In stock

In stock Pipe Fitting

108mm 90 Equal Elbow - End Feed Fittings - 1 Pack

Product code: 7203-7444

£35.80 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

108mm 90 Equal Elbow - End Feed Fittings - 1 Pack details

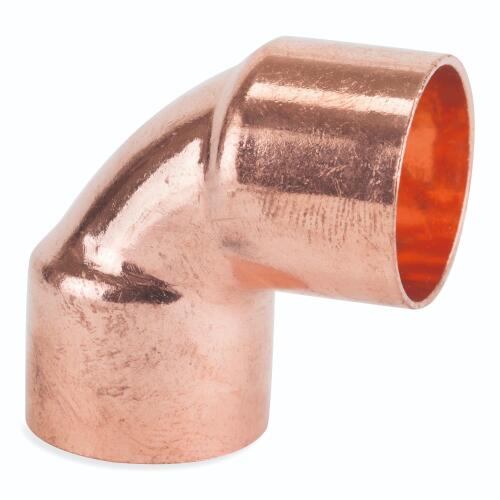

This 108mm equal 90 degree elbow is an end feed copper pipe fitting designed to change the direction of pipework while maintaining the same pipe size on both ends. It is suitable for use with compatible BS EN 1057 copper tube and is designed for gas and water applications.

Manufactured by Flowflex, this capillary elbow offers a neat, lightweight joint for copper installations. It is WRAS approved, made from copper, and manufactured to BS EN 1254-1 and BS EN 1057 standards. The fitting has a maximum operating pressure of 16 bar, a maximum operating temperature of 110 degrees C, and is supplied as a single item with a 25 year guarantee.

Technical specifications

Appearance

Angle: 90
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

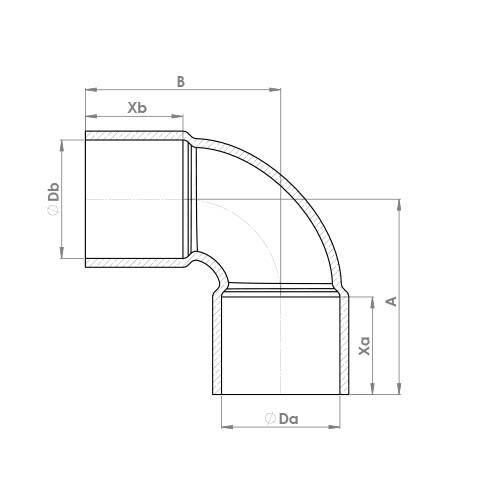

Dimensions

Depth: 254
Height: 254
Width: 111

General

Size Designation: 108mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
