Ball Valves

Ball valves are a practical choice when you need to isolate pipework quickly and clearly. A simple quarter-turn action gives fast shut-off for maintenance points, repairs and emergency isolation, and lever-operated versions make it easy to see whether the valve is open or closed at a glance. This collection is aimed at customers who want straightforward on or off control in compatible systems, rather than a valve for fine flow adjustment.

When comparing options, start with size and connection. In this range, you will find compression ball valves in common sizes including 15mm, 22mm, 28mm, 35mm, 42mm and 54mm, which helps if you are matching an existing line or planning a new section of pipework. There are also different connection formats and related fittings in the wider valve category, so the key check is that the valve size and connection suit your pipe and installation method before you buy.

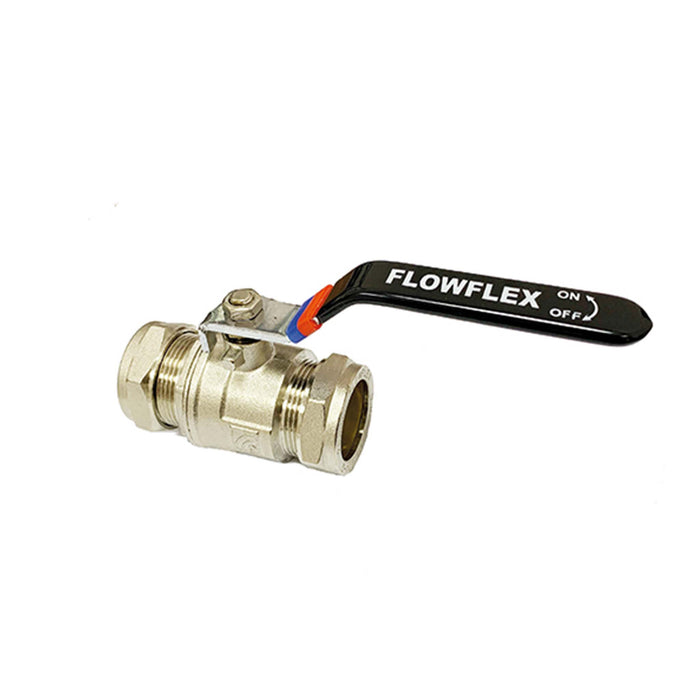

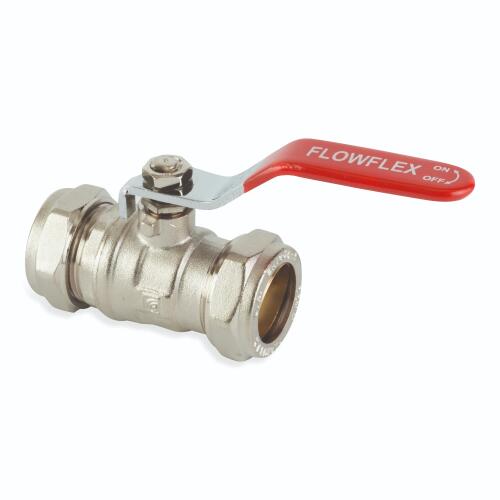

Handle design matters more than many customers expect. Lever arm ball valves are quick to operate and give a visible indication of position, but they do need enough space for the full quarter-turn movement. If the valve will sit near a wall, inside a cupboard or between closely spaced services, allow for handle clearance as well as the body size. That small check can make the difference between easy future isolation and awkward access later on.

It is also worth checking the bore and service suitability on the individual product page. Ball valves in general are made for isolation, but not every model is the same internally or intended for the same duty. Some products in this collection are verified for services such as water, gas or fuel, and full-bore and reduced-bore versions can affect how much restriction the open valve creates. If you need a particular approval, pressure rating or material detail, use the product specification to confirm it for that exact valve.

Across the range you will find brass ball valves, including WRAS approved options, with lever operation for quick manual control. If you already know you want this style, you can go straight to Lever Arm Ball Valves. If you are still comparing shut-off options for the job, Plumbing Valves is a useful next step.
