In stock Pipe Fitting

108mm Coupling - End Feed Fittings - 1 Pack

Product code: 1344-5910

£17.28 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

108mm Coupling - End Feed Fittings - 1 Pack details

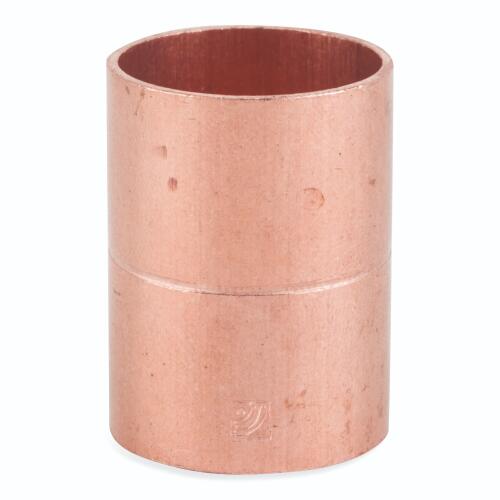

This 108mm straight end feed coupling is a copper equal fitting designed to join compatible BS EN 1057 copper tube in gas and water installations. The capillary connection is soldered in place to create a neat, compact joint, making it suitable for new pipework, repairs and planned alterations where an end feed fitting is required.

Manufactured by Flowflex, this coupling is WRAS approved and made to BS EN 1254-1 and BS EN 1057 applicable standards. It has a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. Supplied as a single item, it offers a lightweight, straightforward solution for straight-through copper pipe connections and is backed by a 25 year guarantee.

Technical specifications

Appearance

Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Straight

Dimensions

Depth: 1
Height: 19
Width: 19

General

Size Designation: 108mm

Installation

Configuration: Straight

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
