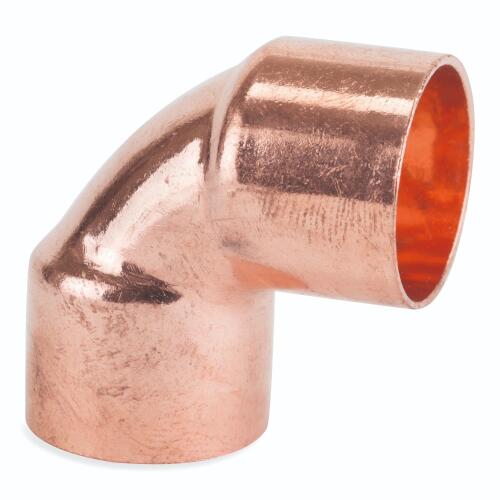

10mm 90 Equal Elbow - End Feed Fittings - 10 Pack

Product code: 2808-7133

£4.90 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

10mm 90 Equal Elbow - End Feed Fittings - 10 Pack details

This 10mm 90 degree equal elbow end feed fitting is designed to change direction in copper pipework while maintaining the same pipe size on both connections. Suitable for use with BS EN 1057 copper tube, it uses a capillary connection for a compact soldered joint commonly used in plumbing and heating installations.

Manufactured by Flowflex, this copper elbow is suitable for gas and water applications, WRAS approved, and made to BS EN 1254-1 and BS EN 1057 standards. It has a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. Supplied as a 10 pack, it offers a practical option for new work, repairs or alterations, with a 25 year guarantee.

Technical specifications

Appearance

Angle: 90
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

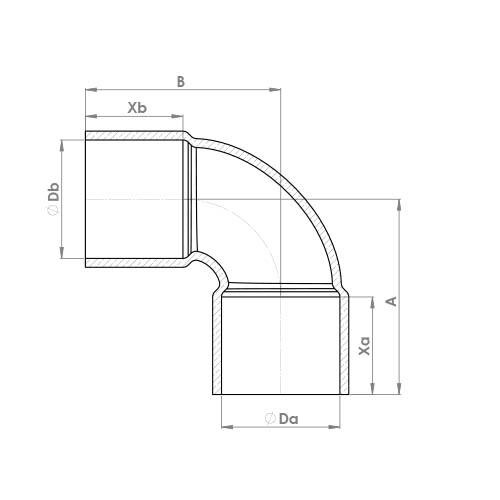

Dimensions

Depth: 24
Height: 24
Width: 11

General

Size Designation: 10mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
