10mm 90 Equal Elbow - Solder Ring Fittings - 25 Pack

Product Code: 9086-9447

£10.14 incl. VAT

Estimated delivery: in 1 working day

Order before the daily cut-off for this estimate.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product Details

The details you need before ordering

10mm 90 Equal Elbow - Solder Ring Fittings - 25 Pack details

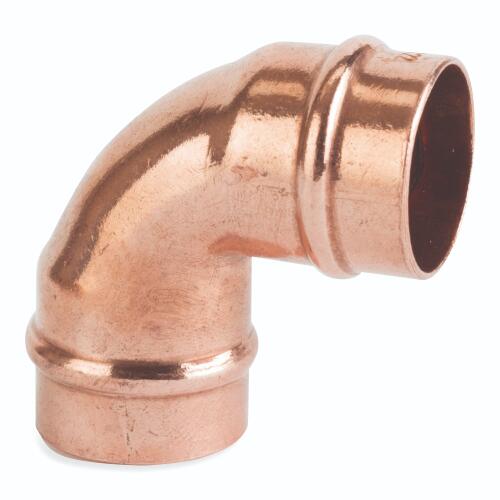

This 10mm 90 degree equal elbow is a copper solder ring fitting designed to create a right-angle change of direction in pipework while maintaining the same 10mm connection size on both ends. It is manufactured by Flowflex and supplied in a 25 pack for larger jobs, repeat installations or keeping stock on hand.

Suitable for gas and water applications, this capillary fitting is compatible with BS EN 1057 copper tube and is approved to BS EN 1254-1. WRAS approval supports its use where required for water systems. The fitting has a maximum operating pressure of 16 bar and a maximum operating temperature of 110 degrees C. Its lightweight copper construction helps provide a simple joint, and it is backed by a 25 year guarantee.

Specifications

Appearance

Angle: 90
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: Solder Ring
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

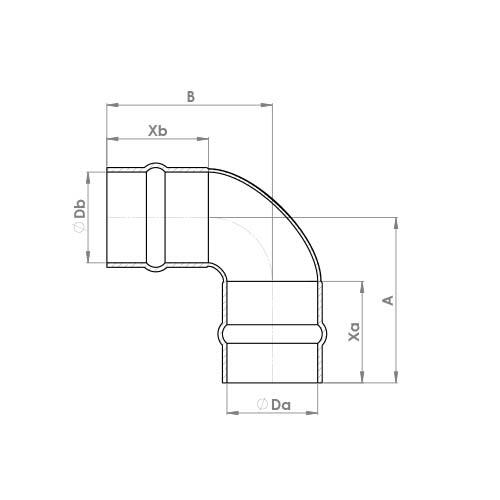

Dimensions

Depth: 25
Height: 25
Width: 12

General

Size Designation: 10mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Warranty

Guarantee (Years): 25
