In stock

In stock Pipe Fitting

10mm Coupling - End Feed Fittings - 10 Pack

Product code: 9787-0797

£3.98 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

10mm Coupling - End Feed Fittings - 10 Pack details

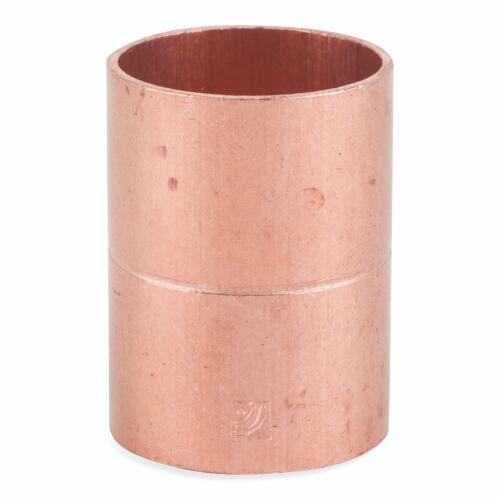

This 10mm straight coupling is an end feed capillary fitting for connecting equal-sized copper tube in gas and water pipework. Supplied as a 10 pack, it is manufactured by Flowflex from copper and is compatible with BS EN 1057 copper tube.

WRAS approved and manufactured to BS EN 1254-1 and BS EN 1057, it is suitable where a neat, compact soldered joint is required. The fitting has a maximum operating pressure of 16 bar, a maximum operating temperature of 110°C, and is backed by a 25 year guarantee.

Technical specifications

Appearance

Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Straight

Dimensions

Depth: 17
Height: 11
Width: 11

General

Size Designation: 10mm

Installation

Configuration: Straight

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
