12mm 90 Equal Elbow - Solder Ring Fittings - 25 Pack

Product code: 4043-3947

£8.72 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

12mm 90 Equal Elbow - Solder Ring Fittings - 25 Pack details

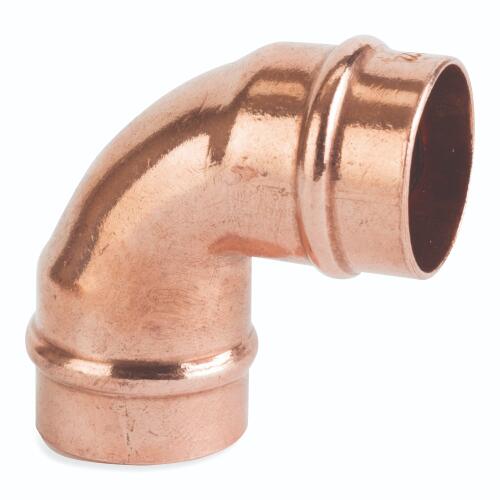

Flowflex 12mm 90 degree equal elbow solder ring fittings are designed for creating a right-angle change of direction in 12mm copper pipe runs. Supplied as a 25 pack, each equal elbow has the same connection size on both ends and uses a capillary connection for a straightforward joint.

Manufactured in copper, this fitting is suitable for gas and water applications, is WRAS approved, and is compatible with BS EN 1057 copper tube. It is made to BS EN 1254-1 and offers a maximum operating pressure of 16 bar and a maximum operating temperature of 110 degrees C. This elbow is lightweight, manufactured by Flowflex, and backed by a 25 year guarantee.

Technical specifications

Appearance

Angle: 90
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: Solder Ring
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

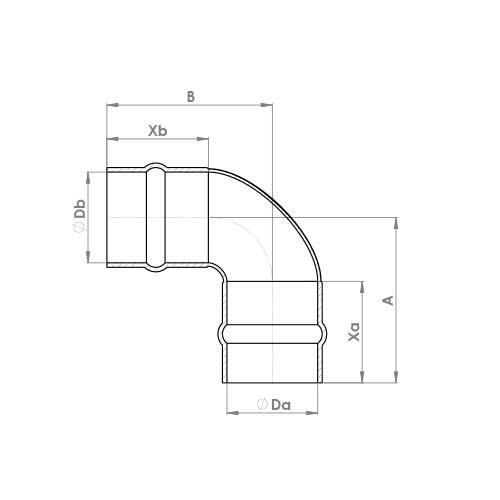

Dimensions

Depth: 31
Height: 31
Width: 17

General

Size Designation: 12mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
