15mm x 1/2" Female Elbow - End Feed Fittings - 10 Pack

Product code: 3200-4779

£16.55 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

15mm x 1/2" Female Elbow - End Feed Fittings - 10 Pack details

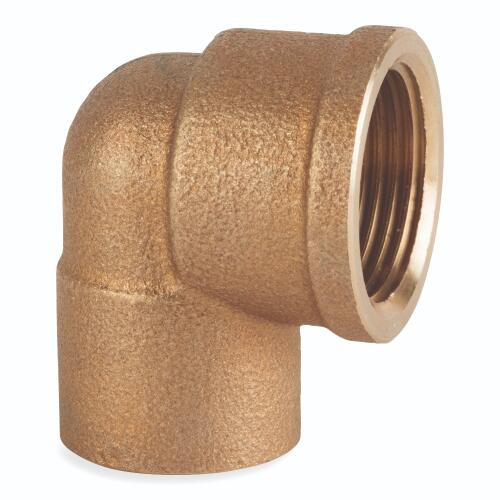

This 15mm x 1/2in female elbow is an end feed pipe fitting designed to change direction within compatible copper pipework. It uses a capillary connection and is suitable for gas and water applications. Supplied as a 10 pack, it is manufactured by Flowflex and is compatible with BS EN 1057 copper tube.

Made from brass with a brass finish, this elbow is WRAS approved and manufactured to BS EN 1254-1 and BS EN 1057. It offers a lightweight, simple joint for neat installations, with a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. A 25 year guarantee is included.

Technical specifications

Appearance

Colour: Brass

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Material: Brass
Type: Elbow

Dimensions

Depth: 36
Height: 27
Width: 3

General

Size Designation: 15mm x 1/2"

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
