In stock

In stock Pipe Fitting

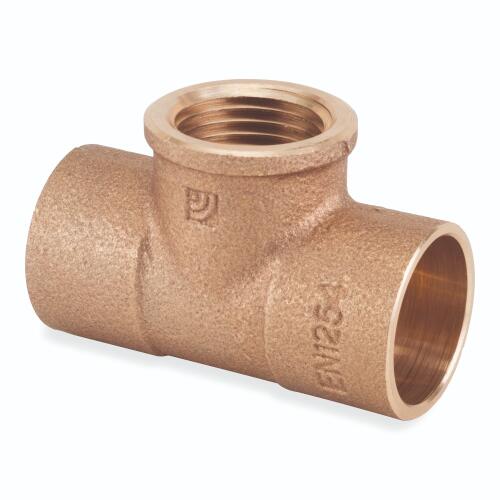

22 x 22mm x 1/2" Bronze Female Tee - End Feed Fittings - 10 Pack

Product code: 8202-8387

£30.78 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22 x 22mm x 1/2" Bronze Female Tee - End Feed Fittings - 10 Pack details

This Flowflex end feed female tee is a reducing capillary fitting designed to create a branch connection from 22mm copper tube to a 1/2 inch female connection. Supplied as a 10 pack, it is suitable for gas and water applications and is compatible with BS EN 1057 copper tube.

WRAS approved and manufactured to BS EN 1254-1, this fitting is intended for secure soldered joints in copper pipework systems. It has a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. The tee configuration helps when adapting pipe runs within new installations or maintenance work, while the lightweight design supports straightforward handling on site. Guaranteed for 25 years.

Technical specifications

Appearance

Colour: Brass

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Reducing
Material: Brass
Type: Tee

Dimensions

Depth: 54
Height: 27
Width: 35

General

Size Designation: 22 x 22mm x 1/2"

Installation

Configuration: Tee

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
