22 x 22mm x 3/4" Bronze Female Tee - End Feed Fittings - 5 Pack

Product code: 3714-8498

£21.09 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22 x 22mm x 3/4" Bronze Female Tee - End Feed Fittings - 5 Pack details

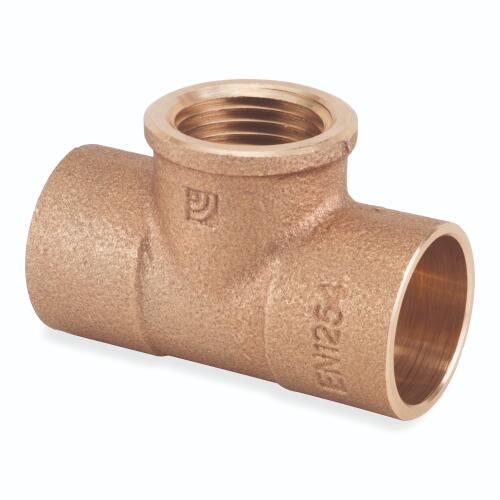

This Flowflex 22 x 22mm x 3/4in bronze female tee is an end feed pipe fitting supplied as a 5 pack. Designed with a tee configuration, it allows a branch connection within compatible pipework and uses a capillary connection for a compact soldered joint.

It is compatible with BS EN 1057 copper tube and suitable for gas and water applications. The fitting is WRAS approved and manufactured to BS EN 1254-1 and BS EN 1057 standards. Maximum operating pressure is 16 bar, with a maximum operating temperature of 110°C. A 25 year guarantee is included.

Technical specifications

Appearance

Colour: Brass

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Material: Brass
Type: Tee

Dimensions

Depth: 57
Height: 32
Width: 45

General

Size Designation: 22 x 22mm x 3/4"

Installation

Configuration: Tee

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
