22mm 90 Long Radius Equal Elbow - End Feed Fittings - 10 Pack

Product code: 6758-7767

£9.99 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

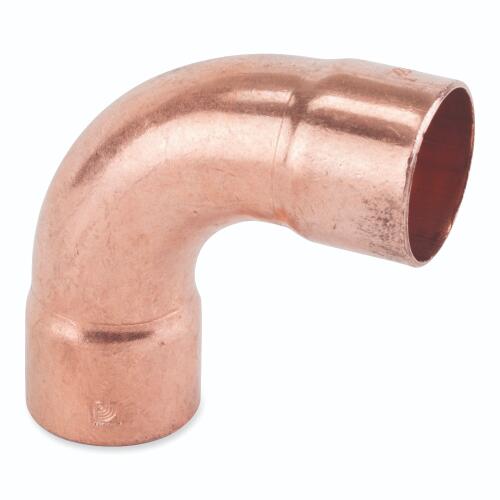

22mm 90 Long Radius Equal Elbow - End Feed Fittings - 10 Pack details

This 22mm 90 degree long radius equal elbow end feed fitting is designed to change direction in copper pipework while maintaining the same pipe size on both ends. Supplied as a 10 pack, it is suitable for gas and water applications and is compatible with BS EN 1057 copper tube.

Manufactured by Flowflex in copper, this capillary fitting provides a neat, lightweight joint for installation work where a soldered end feed connection is required. It conforms to BS EN 1254-1 and has a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. A 25 year guarantee is included.

Technical specifications

Appearance

Angle: 90
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

General

Size Designation: 22mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
