22mm Equal Elbow End Feed Fittings 10 Pack

Product Code: PHQ100144

£8.67 incl. VAT

Estimated delivery: in 1 working day

Order before the daily cut-off for this estimate.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm Equal Elbow End Feed Fittings 10 Pack details

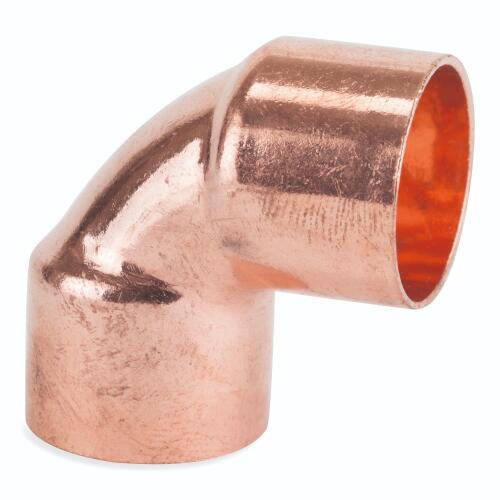

Create a neat 90° change of direction in 22mm copper pipework with these equal end feed elbows from Flowflex. This 10 pack is ideal when you need the same pipe size maintained on both sides of the joint, helping you keep installations compact and tidy.

Made from copper with a capillary end feed connection, these fittings are suitable for gas and water applications and are compatible with BS EN 1057 copper tube. They are WRAS approved, manufactured to BS EN 1254-1, rated PN16, and designed for up to 16 bar and 110°C. A 25 year guarantee gives you added confidence for the job.

Technical specifications

Appearance

Angle: 90
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

General

Size Designation: 22mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110
Pressure Rating: PN16

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
