22mm Full Crossover - End Feed Fittings - 10 Pack

Product code: 7211-8251

£22.84 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm Full Crossover - End Feed Fittings - 10 Pack details

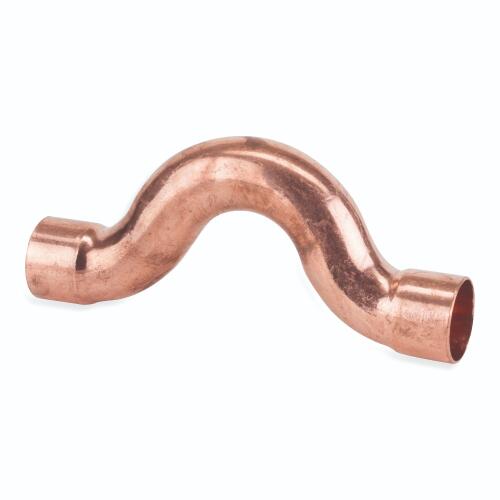

This 22mm full crossover end feed fitting is designed for use with compatible BS EN 1057 copper tube where pipework needs to cross within a straight capillary jointed layout. Supplied as a 10 pack, it is suitable for gas and water applications and is manufactured from copper with a straight, equal configuration.

End feed fittings are soldered onto the pipe to create a compact joint, making them a practical choice where a neat copper installation is required. This Flowflex fitting is WRAS approved, rated for a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. It is backed by a 25 year guarantee.

Technical specifications

Appearance

Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Straight

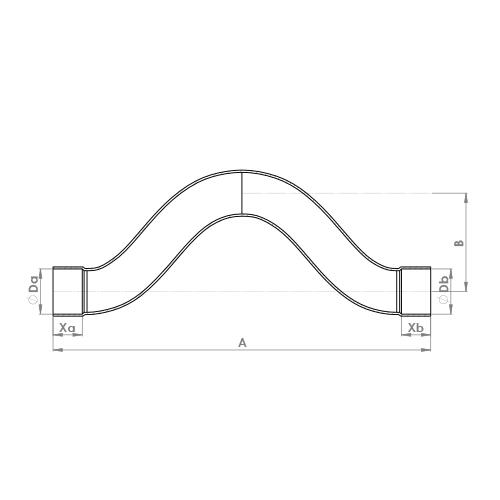

Dimensions

Depth: 129
Height: 52
Width: 23

General

Size Designation: 22mm

Installation

Configuration: Straight

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
