In stock

In stock Pipe Fitting

22mm Part Crossover - End Feed Fittings - 10 Pack

Product code: 8337-2224

£17.08 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

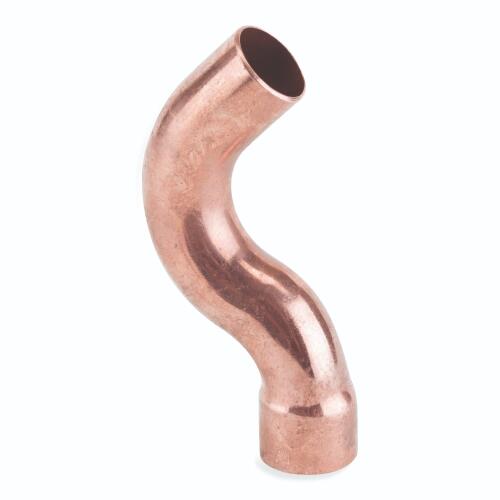

22mm Part Crossover - End Feed Fittings - 10 Pack details

This 22mm part crossover end feed fitting is a copper equal fitting designed for use with compatible BS EN 1057 copper tube. Supplied as a 10 pack, it uses a capillary connection to form a neat, compact joint and is suitable for gas and water applications.

Manufactured by Flowflex, this straight fitting is WRAS approved and made to BS EN 1254-1 and BS EN 1057 standards. It has a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. The copper construction provides a lightweight fitting, and the product is backed by a 25 year guarantee.

Technical specifications

Appearance

Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Straight

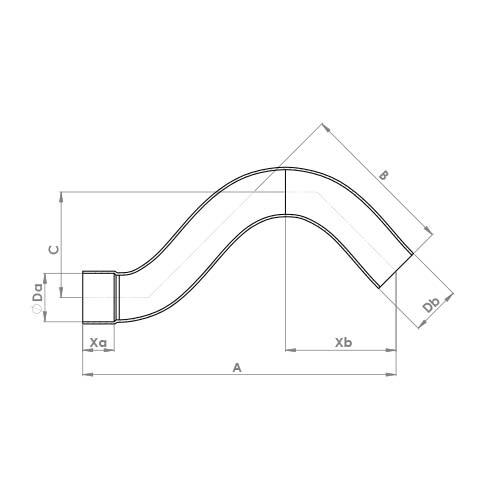

Dimensions

Depth: 117
Height: 52
Width: 23

General

Size Designation: 22mm

Installation

Configuration: Straight

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
