In stock

In stock Pipe Fitting

22mm Straight Coupling Solder Ring Fittings 10 Pack

Product Code: PHQ100155

£10.05 incl. VAT

Estimated delivery: in 1 working day

Order before the daily cut-off for this estimate.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

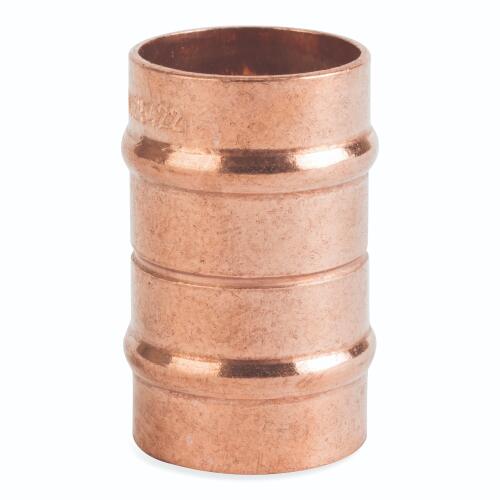

22mm Straight Coupling Solder Ring Fittings 10 Pack details

Make straight 22mm copper pipe runs quickly and neatly with this 10 pack of Flowflex solder ring couplings. The pre-formed lead-free solder helps speed up installation, while the straight equal design is made to join two lengths of compatible 22mm copper tube in line.

Made from copper, these capillary fittings are compatible with copper tube manufactured to BS EN 1057 and suitable for water and gas applications. They are WRAS approved, rated PN16, with a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. A 25 year guarantee gives you added confidence for the job. Check you are using the correct 22mm copper tube and solder-ring connection for your installation before fitting.

Technical specifications

Appearance

Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: Solder Ring
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Straight

General

Size Designation: 22mm

Installation

Configuration: Straight

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110
Pressure Rating: PN16

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
