22mm Tank Connector - Compression Fittings - 10 Pack
Estimated delivery: in 1 working days
Order before the daily cut-off for this estimate.
Business days only. Weekend and post-cut-off orders are processed the next working day.Product information
The details you need before ordering
22mm Tank Connector - Compression Fittings - 10 Pack details

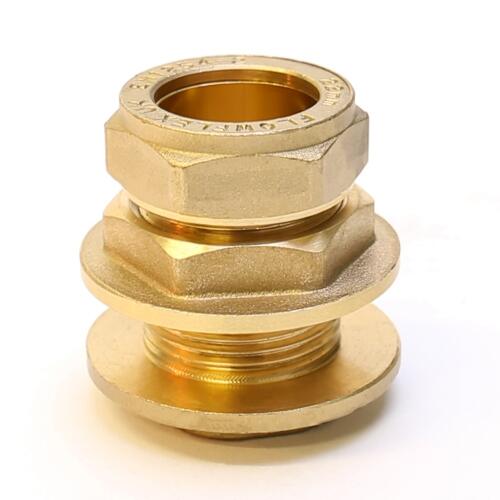

This pack of 22mm tank connectors uses compression fittings to provide a secure, leak-tight connection from a tank to BS EN 1057 copper tube (or other compatible pipework) in water or gas systems. Each fitting employs a compression nut and olive, allowing straightforward installation to the tube with no requirement for heat or solder. The body has an accompanying back nut to create the secure connection with the tank wall.
Manufactured from strong, corrosion-resistant brass, these connectors handle operating pressures up to 16 bar and temperatures up to 110°C. All fittings are WRAS approved and comply with BS EN 1254, making them suitable for potable water. With a 25 year manufacturer guarantee and supplied in a convenient pack of ten, these fittings are suited to domestic and commercial tasks where a reliable, long term solution is required.
Key features
- Manufactured to BS EN 1254,Compatible With Copper Tube Manufactured to BS EN 1057,WRAS Approved,Guaranteed for 25 years
Technical specifications
Unless stated, measurements are in millimetres (mm).
- Applications
- Gas,Water
- Colour
- Brass
- Connection Type
- Compression
- Equal/Reducing
- Equal
- Finish
- Brass
- Manufacturer Guarantee
- 25 Years
- Material
- Brass
- Max Operating Pressure
- 16 Bar
- Max Operating Temperature
- 110C
- Pack Size
- 10
- Size Designation
- 22mm
- Standards
- BS EN 1254-2, BS EN 1057
- Style
- Straight
- Type
- Straight
- WRAS Approved
- Yes
