In stock

In stock Pipe Fitting

22mm x 1" Bent Cylinder Union - - 25 Pack

Product code: 4445-3318

£61.72 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm x 1" Bent Cylinder Union - - 25 Pack details

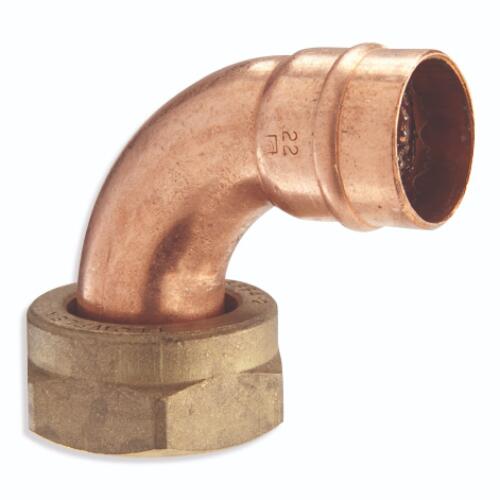

Flowflex 22mm x 1in bent cylinder unions are brass capillary elbows designed for use with BS EN 1057 copper tube. Supplied as a 25 pack, they are suitable for gas and water applications where a compact soldered joint is required.

WRAS approved and manufactured to BS EN 1254-1, these fittings offer a practical option for both new installations and maintenance work. Each fitting has a 22mm x 1in size designation, a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. The lightweight design helps make handling straightforward, and the product is backed by a 25 year guarantee.

Technical specifications

Appearance

Colour: Brass

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Connection Type: Capillary
Material: Brass
Type: Elbow

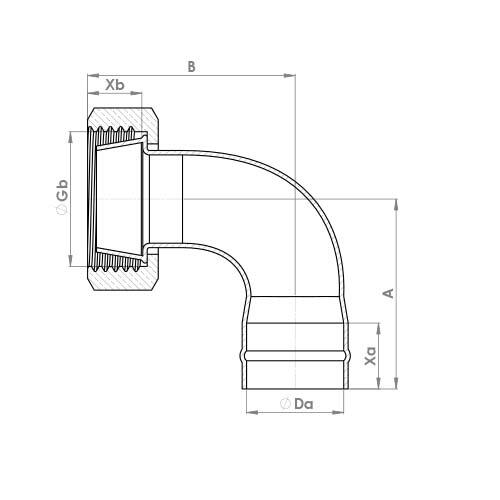

Dimensions

Depth: 3
Height: 56
Width: 6

General

Size Designation: 22mm x 1"

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
