22mm x 1" Bent Cylinder Union - End Feed Fittings - 10 Pack

Product code: 4342-1006

£21.42 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

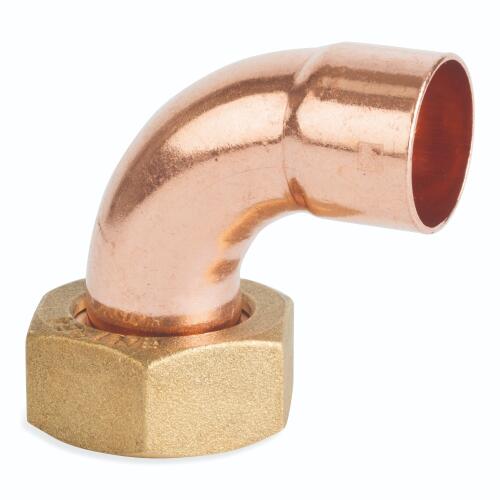

22mm x 1" Bent Cylinder Union - End Feed Fittings - 10 Pack details

Designed to give you a neat change of direction in copper pipework, this 22mm x 1in bent cylinder union is a practical end feed fitting for gas and water installations. Supplied as a 10 pack, it is a sensible choice when you want consistent fittings ready for larger jobs or planned maintenance work.

Made by Flowflex in brass, this capillary elbow is WRAS approved and compatible with BS EN 1057 copper tube. It is manufactured to BS EN 1254-1, with a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. If you need a dependable end feed fitting for a clean, compact joint, this pack helps you get on with the job with confidence.

Technical specifications

Appearance

Colour: Brass

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Material: Brass
Type: Elbow

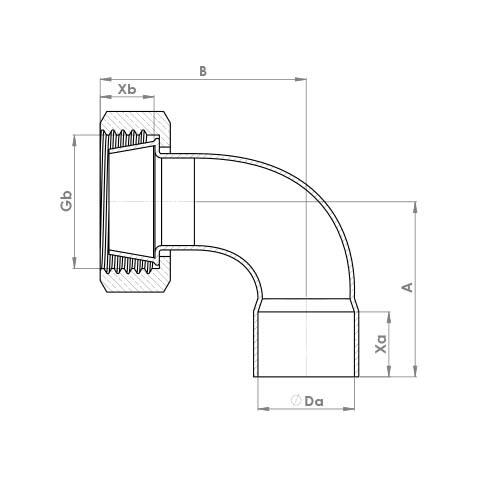

Dimensions

Depth: 41
Height: 45
Width: 25

General

Size Designation: 22mm x 1"

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
