In stock Pipe Fitting

22mm x 1" Cylinder Union - End Feed Fittings - 10 Pack

Product code: 1282-3930

£19.14 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

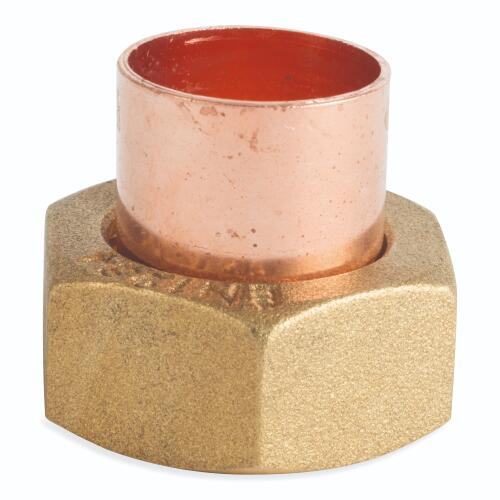

22mm x 1" Cylinder Union - End Feed Fittings - 10 Pack details

Get a neat, reliable straight connection for compatible 22mm x 1in copper pipework with this Flowflex cylinder union 10 pack. Designed for end feed installation, these copper fittings suit gas and water applications and are compatible with BS EN 1057 copper tube, making them a practical choice for new work, repairs and maintenance.

WRAS approved and manufactured to BS EN 1254-1, each fitting uses a capillary connection for a simple, compact joint. With a maximum operating pressure of 16 bar, a maximum operating temperature of 110°C and a 25 year guarantee, this pack gives you dependable fittings ready for the job. Check the connection size matches your pipework before ordering.

Technical specifications

Appearance

Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Material: Copper
Type: Straight

Dimensions

Depth: 38
Height: 42
Width: 42

General

Size Designation: 22mm x 1"

Installation

Configuration: Straight

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
