22mm x 1" Cylinder Union - Solder Ring Fittings - 10 Pack

Product code: 8957-0723

£21.15 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

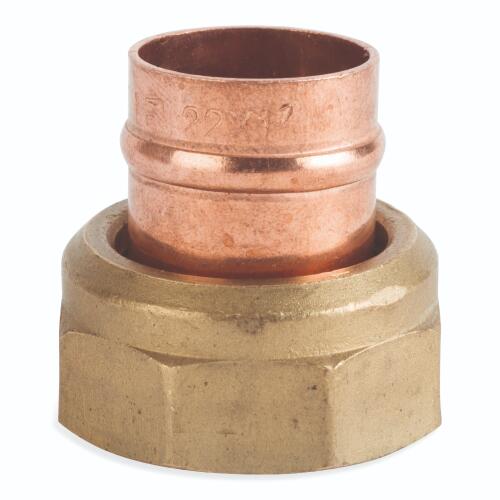

22mm x 1" Cylinder Union - Solder Ring Fittings - 10 Pack details

This Flowflex 22mm x 1in cylinder union is a straight capillary solder ring fitting designed for use with BS EN 1057 copper tube. Supplied as a 10 pack, it is suitable for gas and water installations where a neat, reliable copper connection is required.

Manufactured from copper and finished in a copper colour, this fitting is WRAS approved and made to applicable standards BS EN 1254-1 and BS EN 1057. It has a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. The lightweight design helps simplify jointing, and the product is backed by a 25 year guarantee.

Technical specifications

Appearance

Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: Solder Ring
Connection Type: Capillary
Material: Copper
Type: Straight

Dimensions

Depth: 36
Height: 3
Width: 3

General

Size Designation: 22mm x 1"

Installation

Configuration: Straight

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
