22mm x 1" Male Adaptor - Compression Fittings - 10 Pack
Estimated delivery: in 1 working days
Order before the daily cut-off for this estimate.
Business days only. Weekend and post-cut-off orders are processed the next working day.Product information
The details you need before ordering
22mm x 1" Male Adaptor - Compression Fittings - 10 Pack details

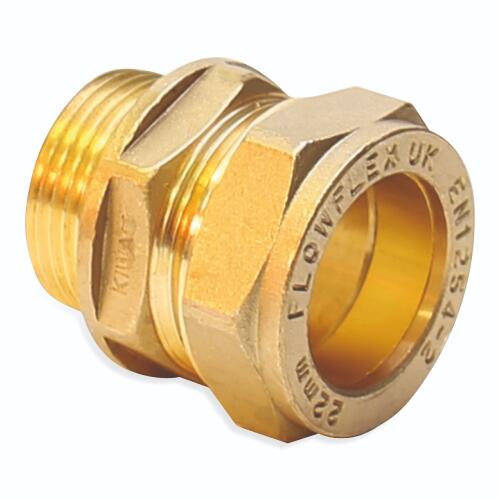

This Flowflex 22mm x 1 inch male adaptor uses compression fitting technology for secure connections between 22mm copper tube and threaded female outlets. The solid brass construction meets BS EN 1254-2 standards and is compatible with copper tube produced to BS EN 1057. Suitable for use in gas and water systems, this straight reducing adaptor handles up to 16 bar of pressure and up to 110C operating temperature. WRAS approval confirms compliance with strict water safety requirements for mains and portable water installations. Supplied as a trade pack of 10 for efficiency on site. Covered by a 25 year manufacturer guarantee for reliability on every installation. No soldering required, with straightforward assembly, dismantling, or adjustment in maintenance work.
Key features
- Manufactured to BS EN 1254,Compatible With Copper Tube Manufactured to BS EN 1057,WRAS Approved,Guaranteed for 25 years
Technical specifications
Unless stated, measurements are in millimetres (mm).
- Applications
- Gas,Water
- Colour
- Brass
- Connection Type
- Compression
- Equal/Reducing
- Reducing
- Finish
- Brass
- Manufacturer Guarantee
- 25 Years
- Material
- Brass
- Max Operating Pressure
- 16 Bar
- Max Operating Temperature
- 110C
- Pack Size
- 10
- Size Designation
- 22mm x 1"
- Standards
- BS EN 1254-2, BS EN 1057
- Style
- Straight
- Type
- Adaptor
- WRAS Approved
- Yes
