22mm x 1" Male Taper Elbow - Compression Fittings - 10 Pack
Estimated delivery: in 1 working days
Order before the daily cut-off for this estimate.
Business days only. Weekend and post-cut-off orders are processed the next working day.Product information
The details you need before ordering
22mm x 1" Male Taper Elbow - Compression Fittings - 10 Pack details

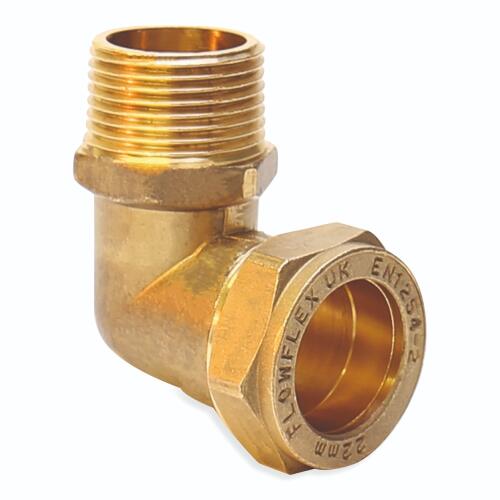

This 22mm x 1 inch male taper elbow is built from quality brass for strength and secure performance in plumbing and heating jobs. Designed to provide a 90 degree connection between copper tube conforming to BS EN 1057 and threaded fittings, it allows a reliable transition between compression and male taper thread systems. No heat or soldering is required, making it efficient for both water and gas installations where durability and leak resistance is critical.
Manufactured to BS EN 1254-2 and WRAS approved, the fitting is engineered to meet strict UK standards. It supports working pressures up to 16 bar and temperatures up to 110C, covering a wide range of building service applications. The compression end delivers a simple, serviceable seal while the male thread ensures compatibility with standard fixtures. Supplied in a 10 pack, suitable for installation and maintenance requiring consistent performance. Backed by a 25 year manufacturer guarantee for extra confidence.
Key features
- Manufactured to BS EN 1254,Compatible With Copper Tube Manufactured to BS EN 1057,WRAS Approved,Guaranteed for 25 years
Technical specifications
Unless stated, measurements are in millimetres (mm).
- Applications
- Gas,Water
- Colour
- Brass
- Connection Type
- Compression
- Equal/Reducing
- Reducing
- Finish
- Brass
- Manufacturer Guarantee
- 25 Years
- Material
- Brass
- Max Operating Pressure
- 16 Bar
- Max Operating Temperature
- 110C
- Pack Size
- 10
- Size Designation
- 22mm x 1"
- Standards
- BS EN 1254-2, BS EN 1057
- Style
- Elbow
- Type
- Adaptor
- WRAS Approved
- Yes
