22mm x 3/4" Female Adaptor Chrome Plated - Compression Fittings - 10 Pack details

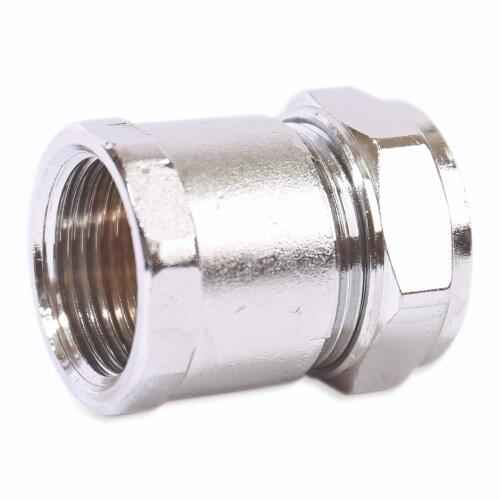

This 22mm x 3/4 inch female adaptor is a compression fitting made from robust brass with a chrome plated finish. Designed for reliable connections between 22mm copper tube and 3/4 inch threaded components, it performs without the need for heat or solder. The fitting is suitable for both water and gas applications in line with domestic and light commercial systems.
Certified to BS EN 1254 for fittings and compatible with copper tube made to BS EN 1057, this adaptor delivers on consistency and safety. With a straight style and compression ends, it ensures a watertight seal when installed correctly. Rated to a maximum working pressure of 16 bar and temperatures up to 110°C, it is reliable for demanding system pressures and heat. Supplied in a 10 pack for trade efficiency, and backed by a 25 year manufacturer guarantee from Flowflex.
Key features
- Manufactured to BS EN 1254,Compatible With Copper Tube Manufactured to BS EN 1057,Guaranteed for 25 years
Technical specifications
Unless stated, measurements are in millimetres (mm).
- Applications
- Gas,Water
- Colour
- Chrome
- Connection Type
- Compression
- Finish
- Chrome
- Manufacturer Guarantee
- 25 Years
- Material
- Brass
- Max Operating Pressure
- 16 Bar
- Max Operating Temperature
- 110C
- Pack Size
- 10
- Size Designation
- 22mm x 3/4"
- Standards
- BS EN 1254-2, BS EN 1057
- Style
- Straight
- Type
- Adaptor
