In stock Pipe Fitting

22mm x 3/4" Female Adaptor - End Feed Fittings - 10 Pack

Product code: 6948-3374

£36.58 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

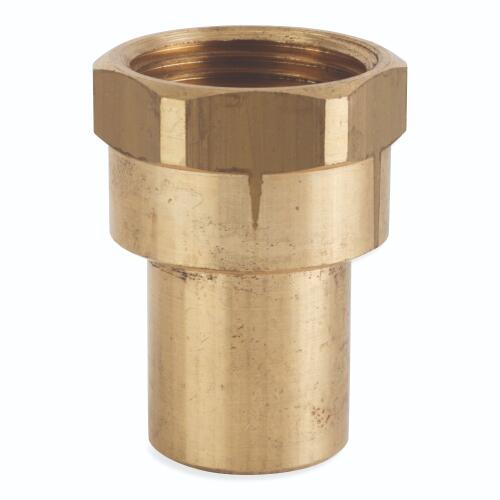

22mm x 3/4" Female Adaptor - End Feed Fittings - 10 Pack details

This 22mm x 3/4" female adaptor helps you connect 22mm copper tube to a female threaded point in a neat, straight run. Supplied as a 10 pack, it is a practical choice for gas and water jobs where you want reliable end-feed capillary fittings ready to hand.

Made from brass, this Flowflex adaptor is manufactured to BS EN 1254 and is compatible with copper tube manufactured to BS EN 1057. It is WRAS approved, rated for pressures up to 16 bar and temperatures up to 110°C, and backed by a 25 year guarantee. If you are matching into existing pipework, simply check that the 22mm x 3/4" size and end-feed connection suit your installation.

Technical specifications

Appearance

Colour: Brass

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-2, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Material: Brass
Type: Adaptor

General

Size Designation: 22mm x 3/4"

Installation

Configuration: Straight

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
