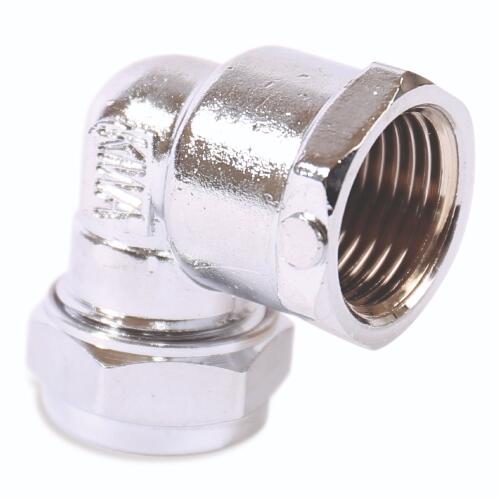

22mm x 3/4" Female Elbow Chrome Plated - Compression Fittings - 10 Pack

Product code: 5363-1881

£35.82 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm x 3/4" Female Elbow Chrome Plated - Compression Fittings - 10 Pack details

This Flowflex 22mm x 3/4" female elbow is a compression adaptor for changing direction within compatible pipework while connecting 22mm copper tube to a 3/4" female threaded connection. Supplied as a 10 pack, it is suitable for water and gas applications where a mechanical compression joint is required.

Made from brass with a chrome finish, this fitting is manufactured to BS EN 1254 and is compatible with copper tube manufactured to BS EN 1057. It has a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. Compression fittings create a secure seal without heat, which can make them a practical choice for installation, maintenance or alteration work. Backed by a 25 year guarantee.

Technical specifications

Appearance

Colour: Chrome

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-2, BS EN 1057

Construction

Connection Type: Compression
Material: Brass
Type: Adaptor

General

Size Designation: 22mm x 3/4"

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
