In stock

In stock Pipe Fitting

22mm x 3/4" Female Elbow - Compression Fittings - 10 Pack

Product code: 1898-0286

£31.43 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm x 3/4" Female Elbow - Compression Fittings - 10 Pack details

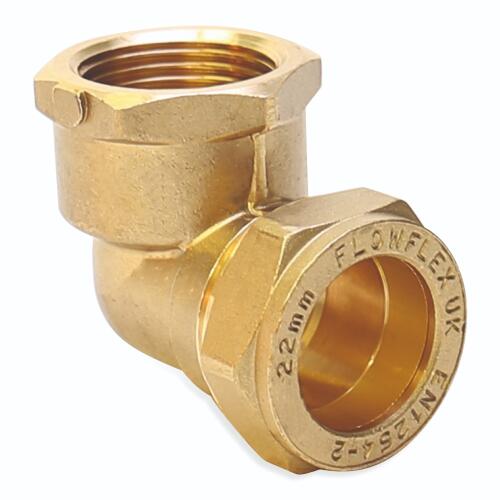

This Flowflex 22mm x 3/4 inch female elbow is a brass compression fitting supplied in a 10 pack for adapting pipework where a change of direction is required. As a compression fitting, it creates a mechanical joint without heat, which can be useful for installation, maintenance or alteration work.

Manufactured to BS EN 1254 and compatible with copper tube manufactured to BS EN 1057, it is suitable for water and gas applications where the specified system requirements are met. The fitting is WRAS approved, has a maximum operating pressure of 16 bar, a maximum operating temperature of 110°C, and is backed by a 25 year guarantee.

Technical specifications

Appearance

Colour: Brass

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-2, BS EN 1057
WRAS Approved: Yes

Construction

Connection Type: Compression
Material: Brass
Type: Adaptor

General

Size Designation: 22mm x 3/4"

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
