In stock Pipe Fitting

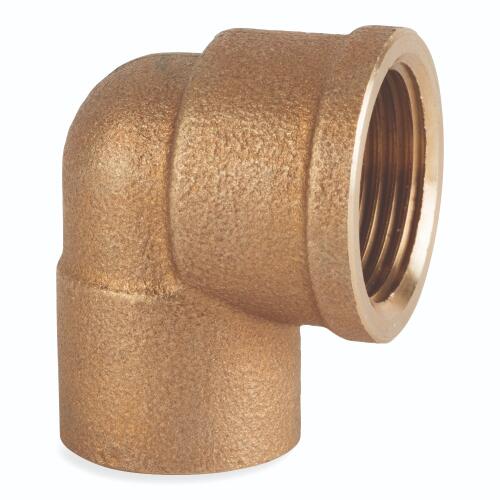

22mm x 3/4" Female Elbow - End Feed Fittings - 10 Pack

Product code: 5339-1053

£28.55 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm x 3/4" Female Elbow - End Feed Fittings - 10 Pack details

This Flowflex 22mm x 3/4" female elbow end feed fitting is designed to change direction within compatible pipework while providing a capillary connection. Supplied as a 10 pack, it is suitable for gas and water applications and is compatible with BS EN 1057 copper tube.

Manufactured in brass with a brass finish, this elbow is WRAS approved and made to applicable standards BS EN 1254-1 and BS EN 1057. It has a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. End feed fittings provide a compact soldered joint, making them a practical choice where a neat, permanent connection is required. Backed by a 25 year guarantee.

Technical specifications

Appearance

Colour: Brass

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Material: Brass
Type: Elbow

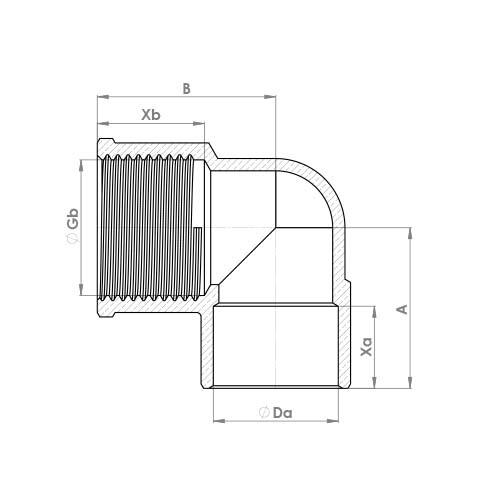

Dimensions

Depth: 46
Height: 26
Width: 39

General

Size Designation: 22mm x 3/4"

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
