22mm x 3/4" Male Taper Elbow - Compression Fittings - 10 Pack
Estimated delivery: in 1 working days
Order before the daily cut-off for this estimate.
Business days only. Weekend and post-cut-off orders are processed the next working day.Product information
The details you need before ordering
22mm x 3/4" Male Taper Elbow - Compression Fittings - 10 Pack details

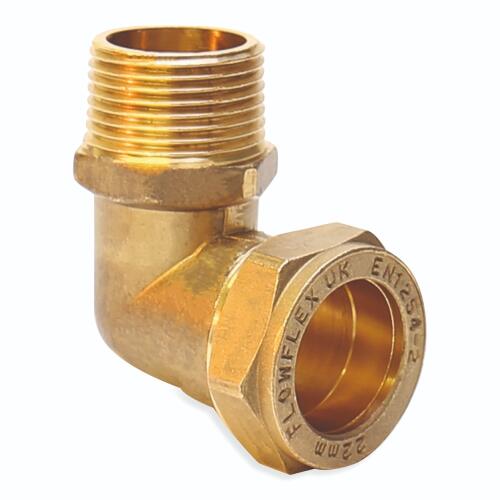

This 22mm x 3/4 inch male taper elbow uses a compression fitting to connect copper pipe to a 3/4 inch male threaded connection without solder. Designed for heating, plumbing, and water systems, it handles both gas and water applications. The elbow is made from robust brass for strength and longevity.
It is manufactured to BS EN 1254-2 and fully compatible with copper tube produced to BS EN 1057 standards. WRAS approval certifies suitability for potable water installations. The maximum operating pressure is 16 bar, withstanding temperatures up to 110C for demanding jobs.
This pack contains 10 brass compression elbows, suited for reliable, watertight installations. Each fitting is backed by a 25 year manufacturer guarantee, providing trusted performance for trade and professional use.
Key features
- Manufactured to BS EN 1254,Compatible With Copper Tube Manufactured to BS EN 1057,WRAS Approved,Guaranteed for 25 years
Technical specifications
Unless stated, measurements are in millimetres (mm).
- Applications
- Gas,Water
- Colour
- Brass
- Connection Type
- Compression
- Finish
- Brass
- Manufacturer Guarantee
- 25 Years
- Material
- Brass
- Max Operating Pressure
- 16 Bar
- Max Operating Temperature
- 110C
- Pack Size
- 10
- Size Designation
- 22mm x 3/4"
- Standards
- BS EN 1254-2, BS EN 1057
- Style
- Elbow
- Type
- Adaptor
- WRAS Approved
- Yes
