22mm x 3/4" Male Taper Elbow - End Feed Fittings - 10 Pack

Product code: 3483-2007

£29.60 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm x 3/4" Male Taper Elbow - End Feed Fittings - 10 Pack details

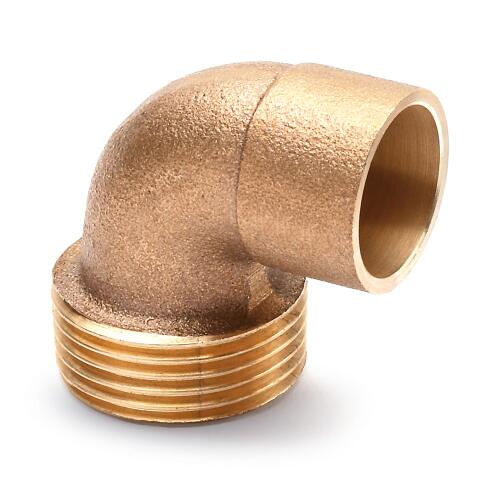

This Flowflex 22mm x 3/4in male taper elbow is an end feed brass fitting for changing direction within compatible pipework while providing a male threaded connection at one end. Supplied as a 10 pack, it is suitable for gas and water applications and is compatible with BS EN 1057 copper tube.

The capillary connection is designed for soldered installation, helping to create a compact joint where space is limited. This elbow is WRAS approved, manufactured to BS EN 1254-1 and offers a maximum operating pressure of 16 bar and maximum operating temperature of 110°C. It is backed by a 25 year guarantee.

Technical specifications

Appearance

Colour: Brass

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Material: Brass
Type: Elbow

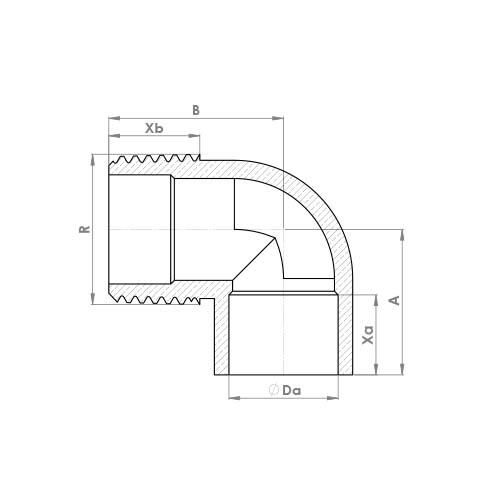

Dimensions

Depth: 48
Height: 27
Width: 41

General

Size Designation: 22mm x 3/4"

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
