22mm x 3/4" Straight Swivel Tap Connector - Compression Fittings - 10 Pack
Estimated delivery: in 1 working days
Order before the daily cut-off for this estimate.
Business days only. Weekend and post-cut-off orders are processed the next working day.Product information
The details you need before ordering
22mm x 3/4" Straight Swivel Tap Connector - Compression Fittings - 10 Pack details

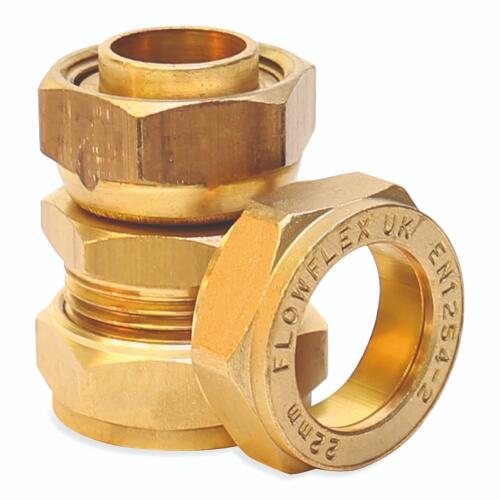

This 22mm x 3/4 inch straight swivel tap connector from Flowflex is a reliable compression fitting designed for robust water and gas system connections. Made from high quality brass, it features a compression-type joint for a strong, leak-resistant seal with copper tube or plastic pipe using correct inserts. The straight profile allows direct alignment between pipework and fixtures without the need for soldering or heat.
Compatible with copper tube manufactured to BS EN 1057, the fitting is independently WRAS approved, ensuring full compliance for potable water use. All components meet the requirements of BS EN 1254-2 for performance and safety. Rated for a maximum operating pressure of 16 bar and a maximum temperature of 110°C, this connector is suitable for both heating and domestic water applications. Supplied in a 10 pack, each unit is backed by a 25 year manufacturer guarantee, suiting professional installation and demanding environments.
Key features
- Manufactured to BS EN 1254,Compatible With Copper Tube Manufactured to BS EN 1057,WRAS Approved,Guaranteed for 25 years
Technical specifications
Unless stated, measurements are in millimetres (mm).
- Applications
- Gas,Water
- Colour
- Brass
- Connection Type
- Compression
- Finish
- Brass
- Manufacturer Guarantee
- 25 Years
- Material
- Brass
- Max Operating Pressure
- 16 Bar
- Max Operating Temperature
- 110C
- Pack Size
- 10
- Size Designation
- 22mm x 3/4"
- Standards
- BS EN 1254-2, BS EN 1057
- Style
- Straight
- Type
- Straight
- WRAS Approved
- Yes
