In stock

In stock Pipe Fitting

22mm x 3/4" Wallplate Elbow - End Feed Fittings - 10 Pack

Product code: 6091-9059

£36.84 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

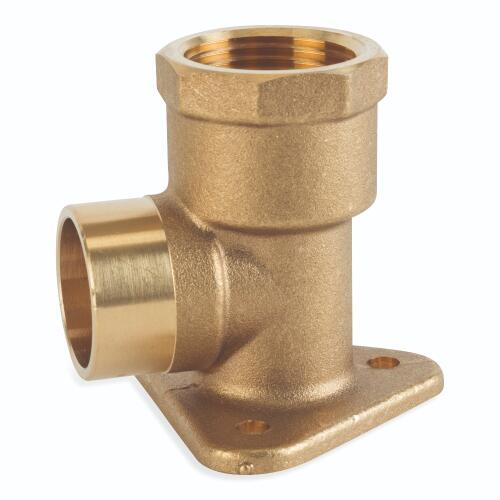

22mm x 3/4" Wallplate Elbow - End Feed Fittings - 10 Pack details

Create a neat, wall-mounted change of direction in copper pipework with this 22mm x 3/4" wallplate elbow. Supplied as a handy 10 pack, it is an end feed capillary fitting designed for use with copper tube manufactured to BS EN 1057, making it a practical choice for new work, repairs and alterations.

Manufactured to BS EN 1254 and WRAS approved, it is suitable for water and gas applications. This brass elbow has a maximum operating pressure of 16 bar, a maximum operating temperature of 110°C, and comes with a 25 year guarantee. If you are matching into existing pipework, simply check the 22mm x 3/4" size and end feed connection suit your installation.

Technical specifications

Appearance

Colour: Brass

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Material: Brass
Type: Elbow

General

Size Designation: 22mm x 3/4"

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
