In stock

In stock Pipe Fitting

22mm x 3/4" Tap Connector - Solder Ring Fittings - 25 Pack

Product code: 8380-2202

£43.55 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm x 3/4" Tap Connector - Solder Ring Fittings - 25 Pack details

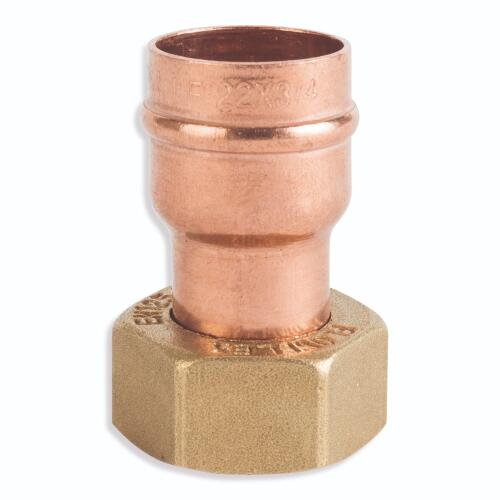

This 22mm x 3/4 inch tap connector is a straight capillary solder ring fitting for joining BS EN 1057 copper tube in gas and water installations. Manufactured by Flowflex, it is WRAS approved and made from copper for a simple, lightweight joint.

Supplied as a 25 pack, each fitting has a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. It is manufactured to BS EN 1254-1 and backed by a 25 year guarantee, making it a practical choice for both planned installations and stocked van or site supplies.

Technical specifications

Appearance

Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: Solder Ring
Connection Type: Capillary
Material: Copper
Type: Straight

Dimensions

Depth: 49
Height: 34
Width: 34

General

Size Designation: 22mm x 3/4"

Installation

Configuration: Straight

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
