In stock

In stock Pipe Fitting

28mm 45 Equal Elbow - End Feed Fittings - 10 Pack

Product Code: 4930-0405

£12.52 incl. VAT

Estimated delivery: in 1 working day

Order before the daily cut-off for this estimate.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

28mm 45 Equal Elbow - End Feed Fittings - 10 Pack details

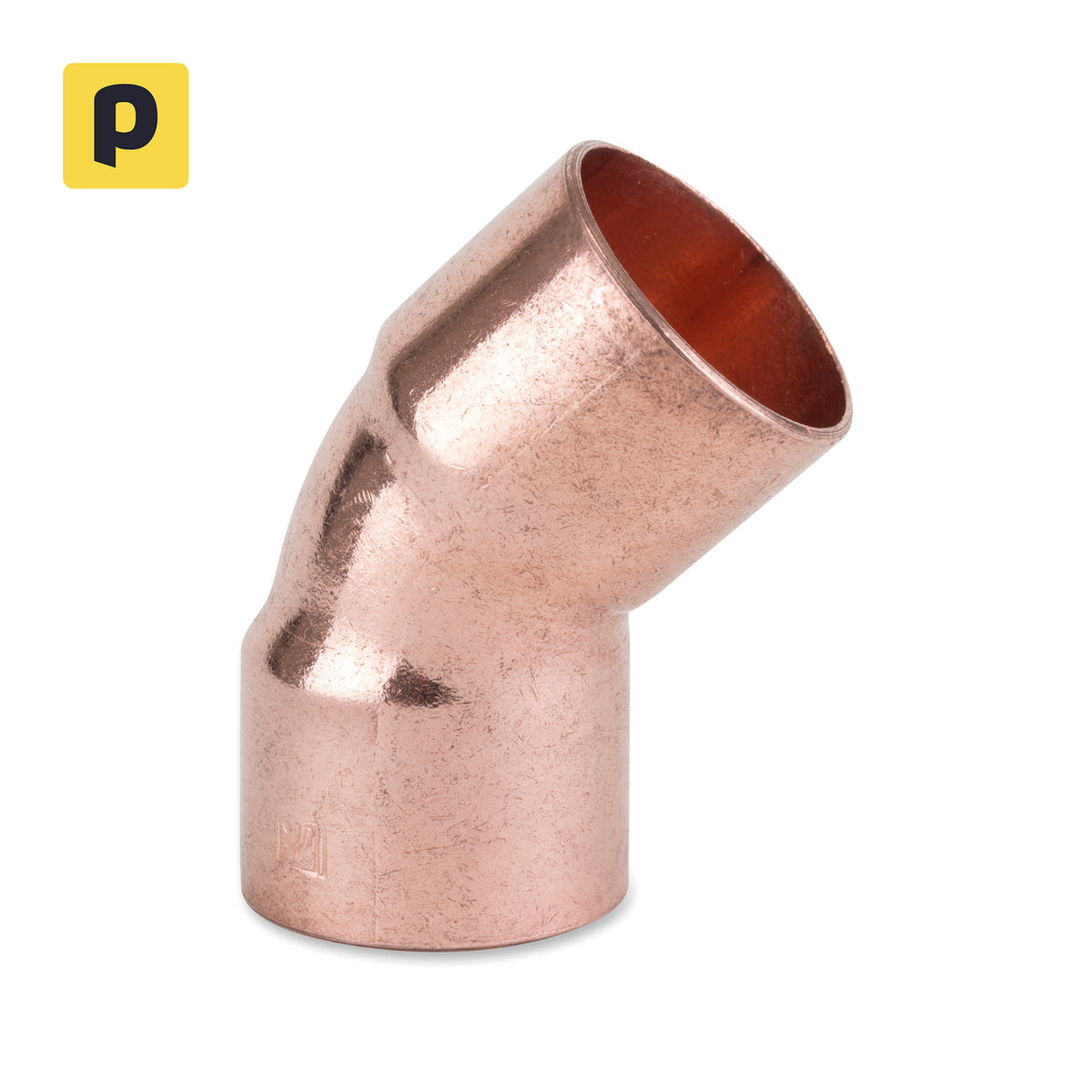

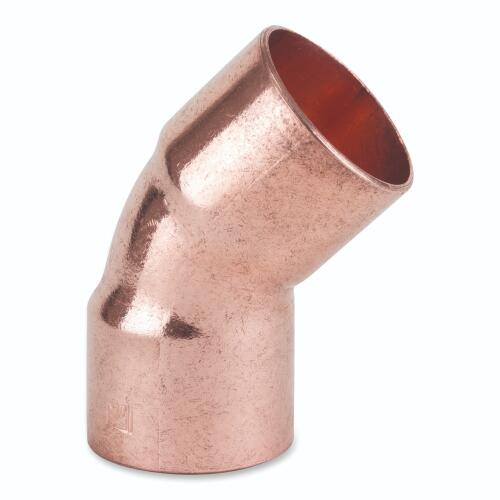

This 28mm equal 45° elbow is an end feed copper fitting designed to change direction in copper pipework while maintaining the same pipe size throughout the joint. Supplied in a 10 pack, it is suitable for gas and water applications and is compatible with BS EN 1057 copper tube.

Manufactured by Flowflex, this capillary fitting is WRAS approved and made from copper with a lightweight, compact form for neat installation. It conforms to BS EN 1254-1 and BS EN 1057, with a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. Dimensions are 29mm height, 29mm width and 65mm depth. 25 year guarantee.

Technical specifications

Appearance

Angle: 45
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

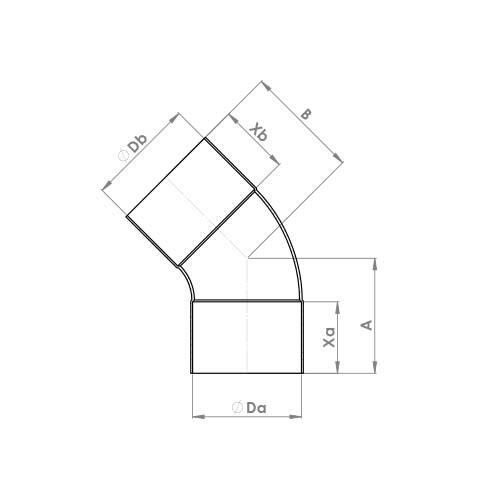

Dimensions

Depth: 65
Height: 29
Width: 29

General

Size Designation: 28mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
