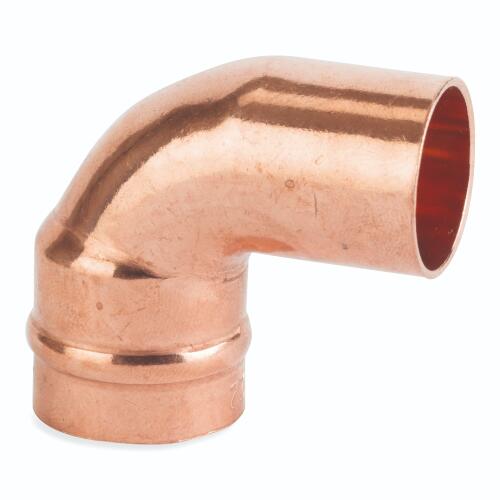

28mm 90 Street Elbow - Solder Ring Fittings - 10 Pack

Product code: 9739-8418

£16.43 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

28mm 90 Street Elbow - Solder Ring Fittings - 10 Pack details

Flowflex 28mm 90° street elbow solder ring fittings are designed for forming a right-angle change of direction in copper pipework. This 10 pack is suitable for gas and water applications, with a capillary connection and compatibility with BS EN 1057 copper tube.

Manufactured in copper and WRAS approved, these fittings offer a lightweight, straightforward joint for installation work. Each elbow is made to BS EN 1254-1 and has a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. A 25-year guarantee provides added long-term assurance.

Technical specifications

Appearance

Angle: 90
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: Solder Ring
Connection Type: Capillary
Material: Copper
Type: Elbow

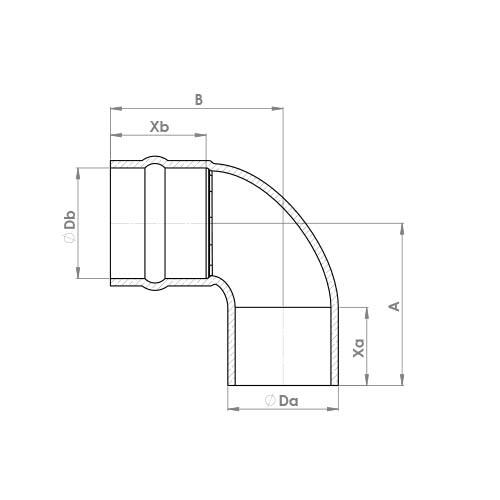

Dimensions

Depth: 55
Height: 49
Width: 3

General

Size Designation: 28mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
