In stock Pipe Fitting

28mm x 1" Cylinder Union - End Feed Fittings - 10 Pack

Product Code: 2532-5157

£20.34 incl. VAT

Estimated delivery: in 1 working day

Order before the daily cut-off for this estimate.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

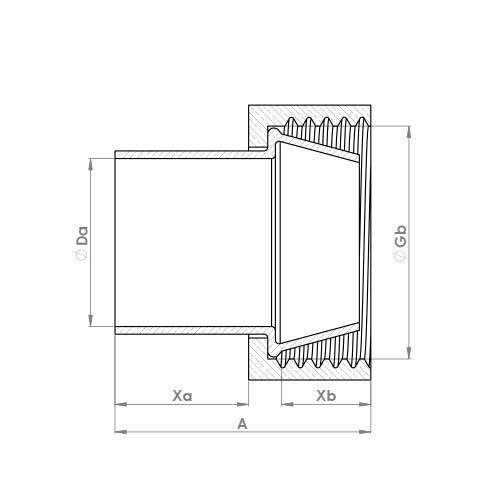

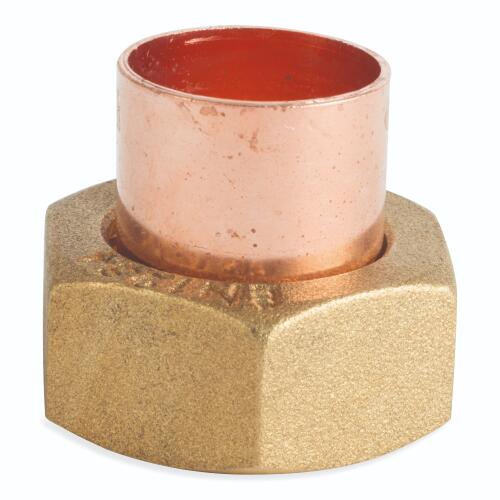

28mm x 1" Cylinder Union - End Feed Fittings - 10 Pack details

Designed to give you a neat, reliable straight connection, this 28mm x 1in cylinder union is a solid choice for gas and water pipework. Supplied as a 10 pack, it uses an end feed capillary connection and is made from copper, making it well suited to work with compatible BS EN 1057 copper tube.

Manufactured by Flowflex and WRAS approved, it is made to BS EN 1254-1 and BS EN 1057 standards for added confidence on the job. The fitting has a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C, with a 25 year guarantee. If you need a straight end feed union for a clean, compact installation, this pack is a practical option to keep your job moving.

Technical specifications

Appearance

Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Material: Copper
Type: Straight

Dimensions

Depth: 55
Height: 45
Width: 45

General

Size Designation: 28mm x 1"

Installation

Configuration: Straight

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
