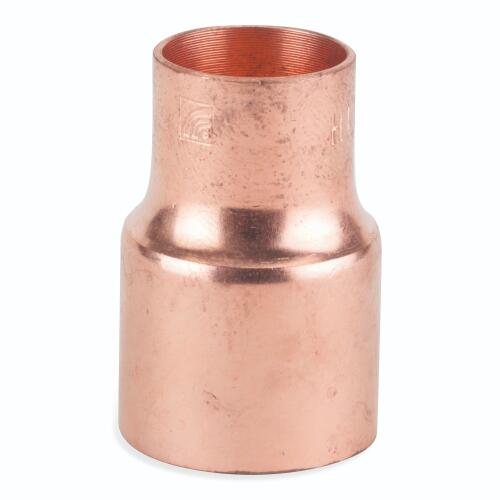

35 x 28mm Fitting Reducer - End Feed Fittings - 5 Pack

Product code: 7256-0068

£8.14 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

35 x 28mm Fitting Reducer - End Feed Fittings - 5 Pack details

This 35 x 28mm end feed fitting reducer is designed to reduce between compatible BS EN 1057 copper tube sizes within gas and water pipework. The straight reducing design helps create a neat, compact joint where a change in pipe diameter is required.

Manufactured in copper by Flowflex, this capillary fitting is WRAS approved and made to applicable standards BS EN 1254-1 and BS EN 1057. It has a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. Supplied as a 5 pack, it offers a lightweight option for new installations, repairs and alterations, with a 25 year guarantee.

Technical specifications

Appearance

Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Reducing
Material: Copper
Type: Straight

Dimensions

Depth: 5
Height: 35
Width: 35

General

Size Designation: 35 x 28mm

Installation

Configuration: Straight

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
