35mm 90 Equal Elbow - End Feed Fittings - 5 Pack

Product code: 3875-5741

£11.43 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

35mm 90 Equal Elbow - End Feed Fittings - 5 Pack details

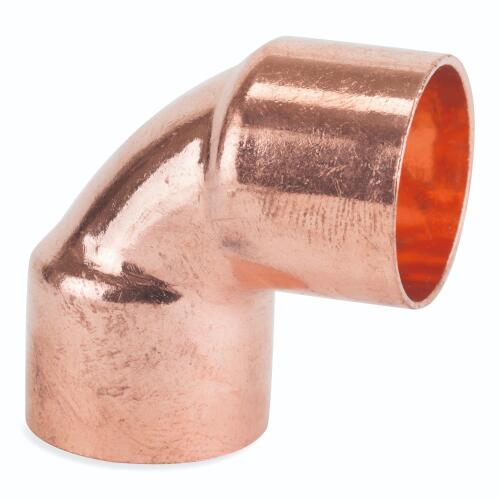

This 35mm equal 90° elbow end feed fitting is designed to change direction in copper pipework while maintaining the same pipe size through the joint. Supplied as a pack of 5, it is suitable for gas and water applications and is compatible with BS EN 1057 copper tube.

Manufactured by Flowflex, this copper capillary fitting provides a lightweight, compact joint for neat pipework layouts. It is WRAS approved, made to BS EN 1254-1 and has a maximum operating pressure of 16 bar with a maximum operating temperature of 110°C. An equal elbow is used where a 90° turn is needed without reducing pipe size.

Key specifications include a 35mm size designation, copper construction and a 25 year guarantee.

Technical specifications

Appearance

Angle: 90
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

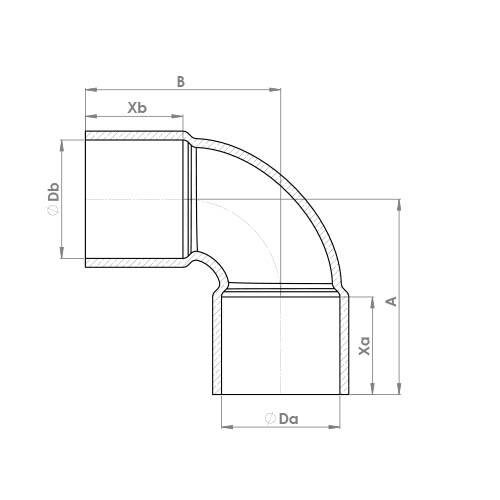

Dimensions

Depth: 62
Height: 62
Width: 36

General

Size Designation: 35mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
