42mm 45 Street Elbow - End Feed Fittings - 5 Pack

Product code: 9218-5209

£13.67 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

42mm 45 Street Elbow - End Feed Fittings - 5 Pack details

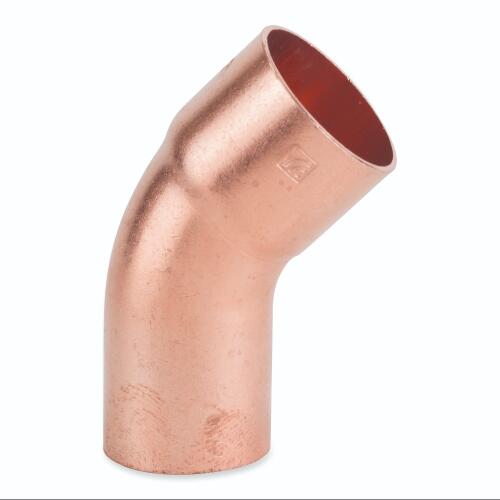

This 42mm 45 degree street elbow end feed fitting is designed to change direction within compatible copper pipework installations. Supplied as a 5 pack, it is manufactured by Flowflex in copper and uses a capillary connection for a neat, compact soldered joint.

Suitable for gas and water applications, this fitting is compatible with BS EN 1057 copper tube and is WRAS approved. It also meets BS EN 1254-1 and offers a maximum operating pressure of 16 bar and maximum operating temperature of 110°C. A practical choice for new work, repairs or system alterations where a 45 degree change of direction is required.

Technical specifications

Appearance

Angle: 45
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Material: Copper
Type: Elbow

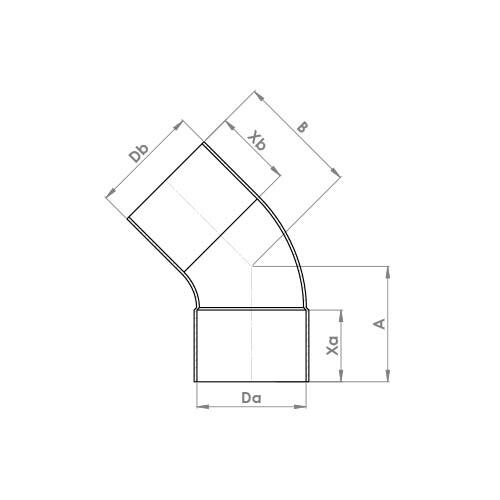

Dimensions

Depth: 94
Height: 44
Width: 44

General

Size Designation: 42mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
