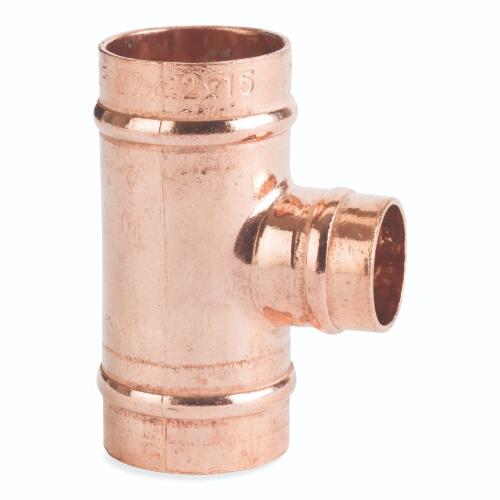

54 x 54 x 22mm Reducing Tee - Solder Ring Fittings - 2 Pack

Product code: 6209-4554

£24.06 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

54 x 54 x 22mm Reducing Tee - Solder Ring Fittings - 2 Pack details

Flowflex 54 x 54 x 22mm reducing tee solder ring fittings are designed to create a branch connection between two 54mm copper tube runs and a 22mm outlet. Supplied as a 2 pack, these copper capillary fittings are compatible with BS EN 1057 copper tube and are suitable for gas and water applications.

Manufactured to BS EN 1254-1 and WRAS approved, they offer a lightweight, simple joint for installation work where a reducing tee is required. Each fitting has a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. Finished in copper and backed by a 25 year guarantee.

Technical specifications

Appearance

Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: Solder Ring
Connection Type: Capillary
Equal or Reducing: Reducing
Material: Copper
Type: Tee

Dimensions

Depth: 98
Height: 87
Width: 56

General

Size Designation: 54 x 54 x 22mm

Installation

Configuration: Tee

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
