54mm 45 Equal Elbow - End Feed Fittings - 2 Pack

Product code: 2630-9743

£12.92 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

54mm 45 Equal Elbow - End Feed Fittings - 2 Pack details

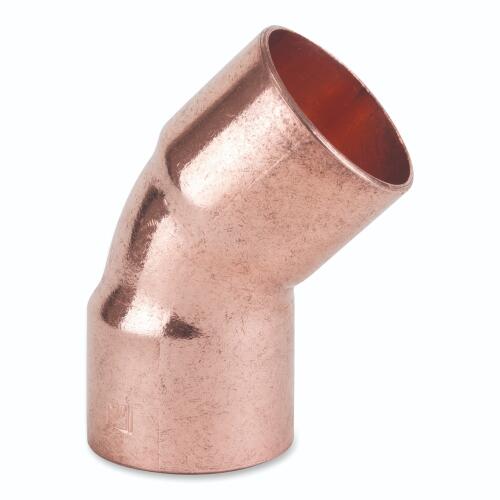

This pack of 2 Flowflex 54mm 45 degree equal elbows is designed for changing direction in copper pipework while maintaining the same pipe size through the joint. As an end feed capillary fitting, it is intended for use with compatible BS EN 1057 copper tube and is suitable for gas and water applications.

Manufactured from copper, this WRAS approved fitting is made to BS EN 1254-1 and offers a neat, compact joint for installation work. It has a maximum operating pressure of 16 bar and a maximum operating temperature of 110 degrees C. The fitting is lightweight, measures 57 x 57 x 15 mm, and is backed by a 25 year guarantee.

Technical specifications

Appearance

Angle: 45
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

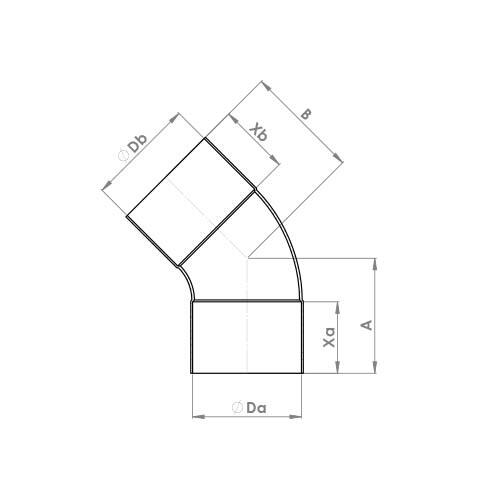

Dimensions

Depth: 15
Height: 57
Width: 57

General

Size Designation: 54mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
