In stock Pipe Fitting

54mm 45 Street Elbow - End Feed Fittings - 2 Pack

Product code: 2410-1426

£10.94 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

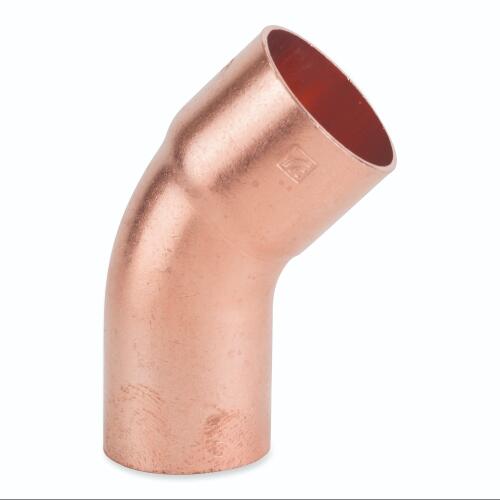

54mm 45 Street Elbow - End Feed Fittings - 2 Pack details

This 54mm 45 degree street elbow end feed fitting is designed to change the direction of copper pipework in gas and water installations. Supplied as a 2 pack, it is manufactured by Flowflex in copper and uses a capillary connection for end feed jointing.

Compatible with BS EN 1057 copper tube, this elbow is WRAS approved and made to applicable standards BS EN 1254-1 and BS EN 1057. It has a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. The compact fitting measures 56mm high, 56mm wide and 16mm deep, and is backed by a 25 year guarantee.

Technical specifications

Appearance

Angle: 45
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Material: Copper
Type: Elbow

Dimensions

Depth: 16
Height: 56
Width: 56

General

Size Designation: 54mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
