76mm 45 Equal Elbow - End Feed Fittings - 1 Pack

Product code: 7031-9543

£11.92 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

76mm 45 Equal Elbow - End Feed Fittings - 1 Pack details

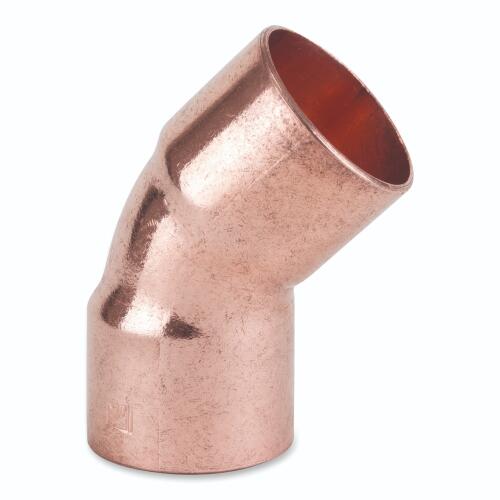

This Flowflex 76mm equal 45 degree elbow is an end feed copper fitting designed to change the direction of pipework while maintaining the same pipe size through the joint. It is suitable for use with BS EN 1057 copper tube and is intended for gas and water applications.

The capillary connection provides a neat, compact joint when installed using the appropriate soldering method. Manufactured in copper, this fitting is WRAS approved, made to BS EN 1254-1 and offers a maximum operating pressure of 16 bar with a maximum operating temperature of 110 degrees C. Supplied as a single pack and backed by a 25 year guarantee.

Technical specifications

Appearance

Angle: 45
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

General

Size Designation: 76mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
