In stock Pipe Fitting

76mm 90 Equal Elbow - End Feed Fittings - 1 Pack

Product code: 1506-3263

£11.57 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

76mm 90 Equal Elbow - End Feed Fittings - 1 Pack details

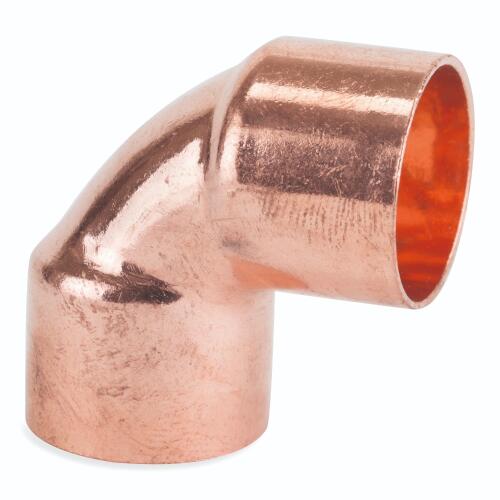

This Flowflex 76mm equal 90 degree elbow end feed fitting is designed to change direction in copper pipework while maintaining the same pipe size on both ends. It is suitable for gas and water applications, and is compatible with BS EN 1057 copper tube.

Manufactured from copper with a capillary connection, this elbow provides a neat, compact joint when installed using the appropriate end feed soldering method. It is WRAS approved, made to BS EN 1254-1 and BS EN 1057 standards, and is rated for a maximum operating pressure of 16 bar and a maximum operating temperature of 110 degrees C. Supplied as a single item, it is backed by a 25 year guarantee.

Technical specifications

Appearance

Angle: 90
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

Dimensions

Depth: 182
Height: 182
Width: 79

General

Size Designation: 76mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
