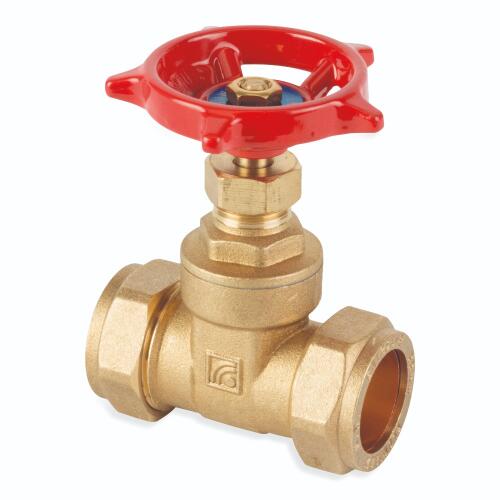

22mm Gate Valve 1 Pack Details
Flowflex 22mm Compression Gate Valve is engineered for complete flow isolation in plumbing systems. Manufactured to BS 5154 standards with compression ends to BS EN 1254-2, this valve features a non-rising stem design with aluminium handwheel for reliable operation. When fully open, its unobstructed flow path delivers minimal pressure loss - ideal for applications where maximum flow efficiency is required.
The valve's measured closing action effectively prevents water hammer, protecting your system from pressure surges. Rated PN16 with an impressive temperature range from -10°C to 170°C, this brass gate valve handles demanding conditions across domestic, commercial and industrial applications.
This WRAS approved fitting ensures compliance with water regulations, while conforming to multiple British Standards including BS EN 12288, BS EN 1254-2 and BS EN 1057. The 22mm compression connection provides straightforward installation with standard copper pipework, offering a secure, leak-free seal.
Key Features
- Manufactured to BS 5154
- Compression Ends to BS EN 1254-2
- Non Rising Stem
- WRAS Approved
What's In The Box
- 1 x Gate Valve
Specifications
Colour | Brass |
Connection Type | Compression |
Finish | Brass |
Handle Type | Handwheel |
Manufacturer Guarantee | 5 Years |
Material | Brass |
Max Operating Temperature | 170C |
Min Operating Temperature | -10C |
Pack Size | 1 |
Pressure Rating | PN16 |
Size Designation | 22mm |
Standards | BS EN 12288,BS EN 1254-2,BS EN 1057 |
Stem Type | Non-rising |
Type | Handwheel |
WRAS Approved | True |
