35mm Gate Valve 1 Pack
Estimated delivery: in 1 working days
Order before the daily cut-off for this estimate.
Business days only. Weekend and post-cut-off orders are processed the next working day.Product information
The details you need before ordering
35mm Gate Valve 1 Pack details

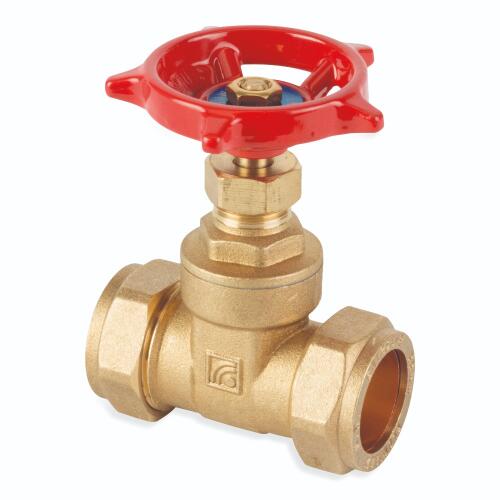

Flowflex 35mm Gate Valve with compression ends engineered to BS 5154 standards. Features brass construction with non-rising stem design and aluminium handwheel for positive flow isolation. Compression ends conform to BS EN 1254-2 and work with BS EN 1057 copper tube for straightforward installation.
This full-bore valve minimises pressure drop when open and delivers gradual closing action to prevent water hammer. Operating temperature range spans -10°C to 170°C with PN16 pressure rating for high-demand applications. WRAS approved for potable water systems, ensuring compliance with drinking water regulations.
Suitable for domestic, commercial, industrial and irrigation installations where reliable isolation is essential. Designed specifically for isolation purposes, not for flow regulation. Single valve supplied per pack.
Key features
- Manufactured to BS 5154
- Compression Ends to BS EN 1254-2
- Non Rising Stem
- WRAS Approved
What's in the box
- 1 x Gate Valve
Technical specifications
Unless stated, measurements are in millimetres (mm).
- Colour
- Brass
- Connection Type
- Compression
- Finish
- Brass
- Handle Type
- Handwheel
- Manufacturer Guarantee
- 5 Years
- Material
- Brass
- Max Operating Temperature
- 170C
- Min Operating Temperature
- -10C
- Pack Size
- 1
- Pressure Rating
- PN16
- Size Designation
- 35mm
- Standards
- BS EN 12288,BS EN 1254-2,BS EN 1057
- Stem Type
- Non-rising
- Type
- Handwheel
- WRAS Approved
- Yes
