54mm Gate Valve 1 Pack
Estimated delivery: in 1 working days
Order before the daily cut-off for this estimate.
Business days only. Weekend and post-cut-off orders are processed the next working day.Product information
The details you need before ordering
54mm Gate Valve 1 Pack details

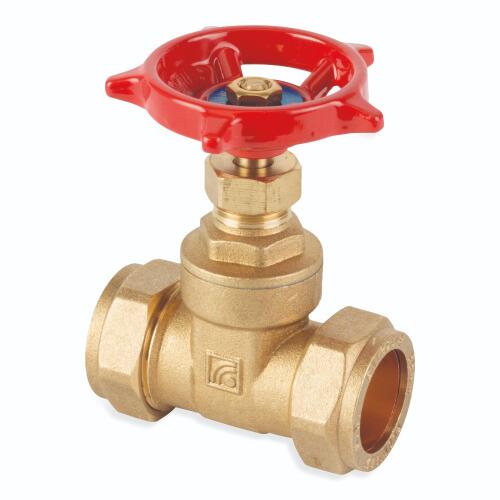

This 54mm Compression Gate Valve from Flowflex is engineered for system isolation in plumbing installations. Manufactured to BS 5154 with compression ends conforming to BS EN 1254-2, it provides reliable flow interruption with minimal pressure loss when fully open. The non-rising stem design and aluminium handwheel offer straightforward operation while the valve's gradual closing action significantly reduces water hammer effects.
Constructed from solid brass with a PN16 pressure rating, this valve operates across an extensive temperature range from -10°C to 170°C. Its 54mm compression connections comply with BS EN 1057, ensuring compatibility with standard copper pipework. WRAS approval confirms this product meets water regulations for use in potable water systems.
Suitable for domestic, commercial, industrial and irrigation applications where complete flow isolation is required. This robust gate valve should not be used for flow regulation or as a control valve.
Key features
- Manufactured to BS 5154
- Compression Ends to BS EN 1254-2
- Non Rising Stem
- WRAS Approved
What's in the box
- 1 x Gate Valve
Technical specifications
Unless stated, measurements are in millimetres (mm).
- Colour
- Brass
- Connection Type
- Compression
- Finish
- Brass
- Handle Type
- Handwheel
- Manufacturer Guarantee
- 5 Years
- Material
- Brass
- Max Operating Temperature
- 170C
- Min Operating Temperature
- -10C
- Pack Size
- 1
- Pressure Rating
- PN16
- Size Designation
- 54mm
- Standards
- BS EN 12288,BS EN 1254-2,BS EN 1057
- Stem Type
- Non-rising
- Type
- Handwheel
- WRAS Approved
- Yes
