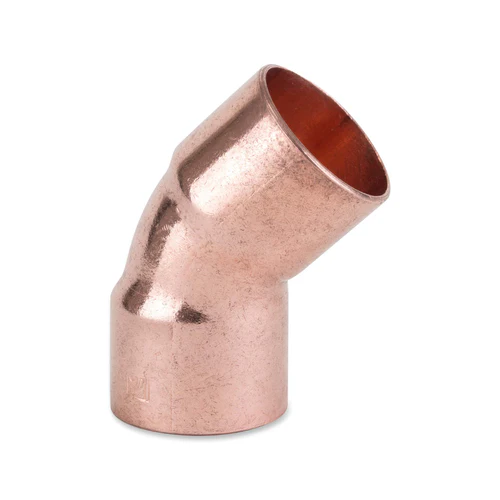

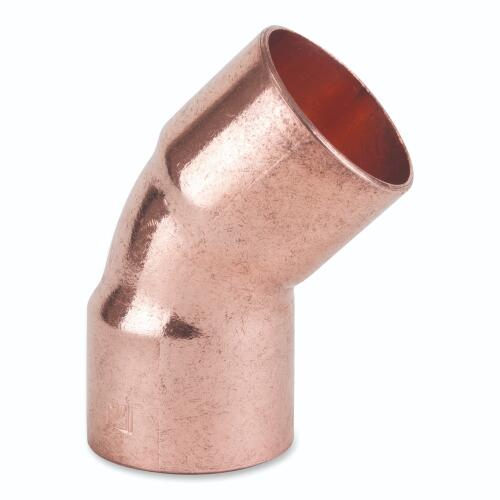

22mm 45 Equal Elbow End Feed Fittings 10 Pack

Product Code: PHQ100050

£8.76 incl. VAT

Estimated delivery: in 1 working day

Order before the daily cut-off for this estimate.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm 45 Equal Elbow End Feed Fittings 10 Pack details

Create a smooth 45° change of direction in 22mm copper pipework with this pack of 10 equal end feed elbows. Ideal when you want a gentler turn than a 90° fitting, each elbow keeps the same pipe size through the joint for a neat, consistent layout.

Made from copper and manufactured by Flowflex, these capillary end feed fittings are compatible with BS EN 1057 copper tube and suitable for gas and water applications. They are WRAS approved, made to BS EN 1254-1, and rated up to 16 bar with a maximum operating temperature of 110°C. Lightweight and simple to joint, they are a practical choice for new work, repairs or alterations. Backed by a 25 year guarantee, they are ready for the next stage of your pipework job.

Technical specifications

Appearance

Angle: 45
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

General

Size Designation: 22mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110
Pressure Rating: PN16

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
