In stock Pipe Fitting

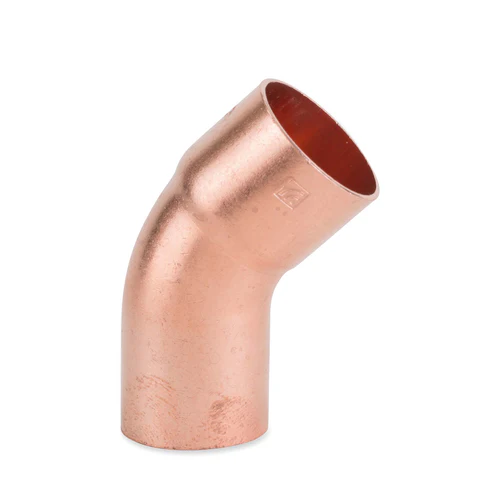

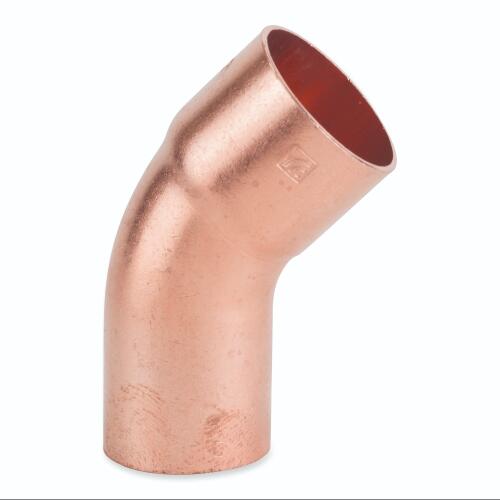

22mm 45 Street Elbow End Feed Fittings 10 Pack

Product code: PHQ100048

£9.20 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm 45 Street Elbow End Feed Fittings 10 Pack details

Designed to give 22mm copper pipework a neat 45° change of direction, this pack of 10 Flowflex street elbow end feed fittings helps you build a compact, tidy layout for gas or water installations. The street elbow configuration provides an equal capillary connection and is compatible with BS EN 1057 copper tube.

Made from copper, these fittings are WRAS approved and manufactured to BS EN 1254-1 and BS EN 1057 standards. They are suitable for end feed soldered joints, with a maximum operating pressure of 16 bar, PN16 pressure rating and maximum operating temperature of 110°C. Backed by a 25 year guarantee, they are a practical choice when you want a dependable copper fitting for the job.

Technical specifications

Appearance

Angle: 45
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

General

Size Designation: 22mm

Installation

Configuration: Street Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110
Pressure Rating: PN16

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
