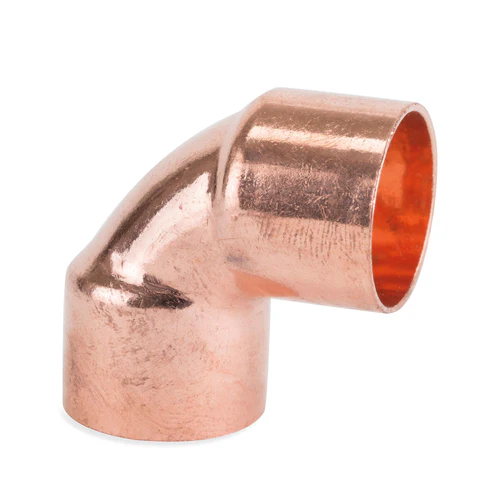

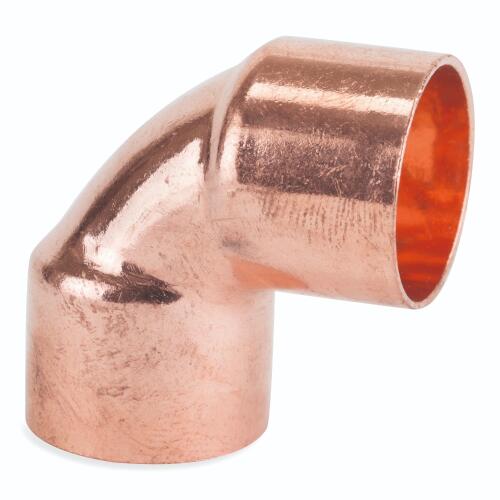

15mm 90 Equal Elbow End Feed Fittings 25 Pack

Product Code: PHQ100042

£8.69 incl. VAT

Free delivery

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product Details

The details you need before ordering

15mm 90 Equal Elbow End Feed Fittings 25 Pack details

This pack of 25 Flowflex 15mm 90 degree equal end feed elbows is designed to change direction in copper pipework while keeping the same pipe size on both connections. The capillary end feed connection is suitable for use with compatible BS EN 1057 copper tube, making it a practical choice for new installations, repairs and alterations.

Manufactured in copper, these fittings are suitable for gas and water applications and are WRAS approved. Each elbow has a 90 degree equal configuration, with a maximum operating pressure of 16 bar, PN16 pressure rating and maximum operating temperature of 110 degrees C. Guaranteed for 25 years.

Specifications

Appearance

Angle: 90
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

General

Size Designation: 15mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110
Pressure Rating: PN16

Warranty

Guarantee (Years): 25
