22mm 90 Equal Elbow End Feed Fittings 25 Pack

Product code: PHQ100043

£17.01 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm 90 Equal Elbow End Feed Fittings 25 Pack details

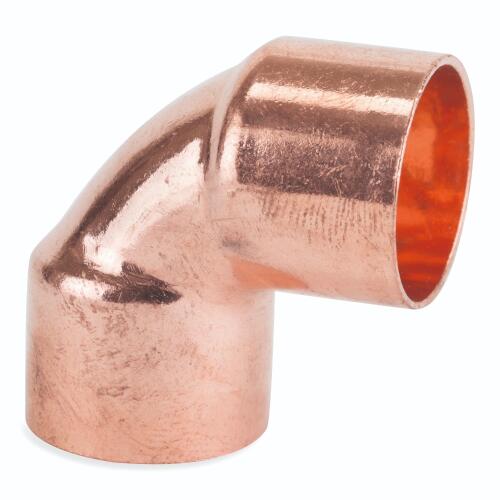

This pack of 25 Flowflex 22mm 90 degree equal elbow end feed fittings is designed to change direction in copper pipework while maintaining the same pipe size on both ends. The capillary connection provides a neat, compact joint for use with compatible BS EN 1057 copper tube.

Suitable for gas and water applications, these copper elbows are WRAS approved and manufactured to BS EN 1254-1 and BS EN 1057. They have a maximum operating pressure of 16 bar, a maximum operating temperature of 110°C and a PN16 pressure rating. A practical choice for new installations, repairs or pipework alterations where a 90 degree change of direction is required.

Manufactured by Flowflex and backed by a 25 year guarantee.

Technical specifications

Appearance

Angle: 90
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

General

Size Designation: 22mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110
Pressure Rating: PN16

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
